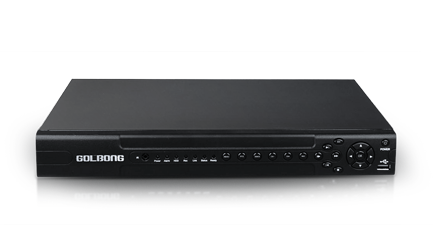

Gravador Digital de Vídeo 16 Canais HD

Gravador Digital de Vídeo 16 Canais HD

Modelo:3554-28
Channel: 16CH analog
Harddrive: 1 Units x 6TB
Standard: H.264
Local display: HDMI/VGA
 0 (0)
Descrição
Specification
Rated Voltage and Power
Rated Voltage and Power 110–240 VAC; 50/60 Hz; 1.5A
External power adapterDC output DC12V 4A
Video
Video Standard PAL or NTSC
Compression H.264
Outputs VGA/HDMI
Inputs 16 composite video 1 Vpp 75 ohm automatic termination
Audio
Inputs 1 line in , mono RCA,1 Vpp, 10 kohm
Output 1 line out, mono RCA, 1 Vpp, 10 kohm
Compression G.711
Sampling rate 8 kHz per channel
Monitors
VGA/HDMI Live, playback, menus
Live Resolution SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080PAL: 704x576, NTSC: 704x480
Display Modes
Screen Full, full sequence, quad, multi-screen (live and playback), event call-up (live)
Frame rate PAL/NTSC 25/30 IPS per channel (real time)
Multi-screen mode 4 channels 1, 2x2, 3x3, 4x4
Digital Zoom Yes
Display languages Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI
Alarm Handling
Inputs 4 input
Outputs 1 output
Events Alarm input, Motion detect, Video Blind, Video Loss,
Remote notification Via Control Center software, email, Push message
Malfunction relay Disk space low, IP conflict, Disk failures
Connections
Ethernet 10/100Base-T, auto-sensing, half/full duplex, RJ45
USB Two USB 2.0 ports
Network
Protocols HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP
Cameras 16*4M@8fps(AHD);16*3M@10fps(AHD);16*1080P @15fps (5 in 1)
Storage
Internal HDD 2 unit
Redundancy N/A
Exporting
USB Flash memory
Network Golbong Software
Security
Password protection Multi-level
Recording
Overwrite modes Continuous, overwrite
Playback
Decoding Capacity 8-CH
Playback function Fast forward/reverse, frame forward /reverse,freeze
Digital Zoom yes
Search mode Date/time, Event (motion, input)
Mechanical
Dimensions (W x D x H)(excluding cabling) 255(L) x 44(H) x 236(W)
Weight TBA
Environmental
Operating temperature +5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
Analog HD Video Recorder 3554-28
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Gravador Digital de Vídeo 16 Canais HD

Modelo:3554-28
Channel: 16CH analog
Harddrive: 1 Units x 6TB
Standard: H.264
Local display: HDMI/VGA
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

Re-use the coaxial cable

The user can re-use existed coaxial cable to upgrade the analog system to HD CCTV with 3554-28 AHD Recorder.

Plug & play Setup

The user can complete the system upgrade with simple plug and play to 3554-28 AHD Recorder, no need to configure each of the camera front-end.

All-in-One System

The operator can use 3554-28 AHD Recorder to record the live stream from cameras, decode video feed for real time monitor, and search footage for review.

Motion recording and playback

The 3554-28 AHD Recorder can start record the video stream when the motion is detected. The operator doesn't need to playback all the footage, but only interests section.

Network access

The users can access 3554-28 AHD Recorder by the network to view the live, playback, even manage the recorder.
