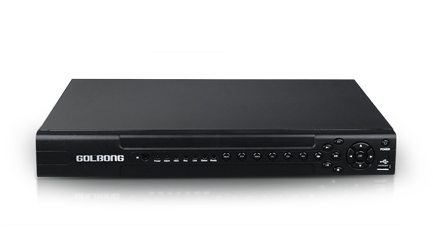

Gravador Digital de Vídeo em Rede 16 Canais

Gravador Digital de Vídeo em Rede 16 Canais

Modelo:3044
Channel: 16CH
Harddrive: 2 Units x 6TB
Standard: H.265/H.264
Local display: HDMI/VGA
 0 (0)
Descrição
Specification
Rated Voltage and Power
Rated Voltage and Power 110–240 VAC; 50/60 Hz; 1.5A
External power adapterDC output DC12V 4A
Video
Video Standard PAL or NTSC
Compression H.265/H.264
Outputs VGA/HDMI
Audio
Inputs 1 line in , mono RCA,1 Vpp, 10 kohm
Output 1 line out, mono RCA, 1 Vpp, 10 kohm
Compression G.711
Sampling rate 8 kHz per channel
Monitors
VGA/HDMI Live, playback, menus
Live Resolution SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080PAL: 704x576, NTSC: 704x480
Display Modes
Screen Full, full sequence, quad, multi-screen (live and playback), event call-up (live)
Frame rate PAL/NTSC 25/30 IPS per channel (real time)
Multi-screen mode 4 channels 1, 2x2, 3x3, 4x4
Digital Zoom Yes
Display languages Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI
Alarm Handling
Inputs N/A
Outputs N/A
Events Motion detect, Video Blind, Video Loss, IPC Alarm
Remote notification Via Control Center software, email, Push message
Malfunction relay Disk space low, IP conflict, Disk failures
Connections
Ethernet 10/100/1000 Base-T, auto-sensing, half/full duplex, RJ45
USB Two USB 2.0 ports
Network
Protocols HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP
IP cameras 8 IP 5MP/16 IP 4MP
Supported IP H.264devices Golbong IP Cameras, Onvif 2.0 compliance IPC
Storage
Internal HDD 2 unit
Redundancy Yes
Exporting
USB Flash memory
Network Golbong Software
Security
Password protection Multi-level
Recording
Overwrite modes Continuous, overwrite
Playback
Decoding Capacity 5mp @120 fps (4-CH)
Playback function Fast forward/reverse, frame forward /reverse,freeze
Digital Zoom yes
Search mode Date/time, Event (motion, input)
Mechanical
Dimensions (W x D x H)(excluding cabling) 350(L) x 44(H) x 296.4(W)
Weight TBA
Environmental
Operating temperature +5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
PRO Network Video Recorder, 8 IP 5MP/16 IP 4MP 3044
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Gravador Digital de Vídeo em Rede 16 Canais

Modelo:3044
Channel: 16CH
Harddrive: 2 Units x 6TB
Standard: H.265/H.264
Local display: HDMI/VGA
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

Complete setup in minutes, not an hour

The users can setup the ip system with quick set module which will assign the IP address and make the connection to each cameras automatically.

Next Level Codec

The 3044 PRO NVR can deliver 30% ~ 50% extra recording capability with its H.265 codec.

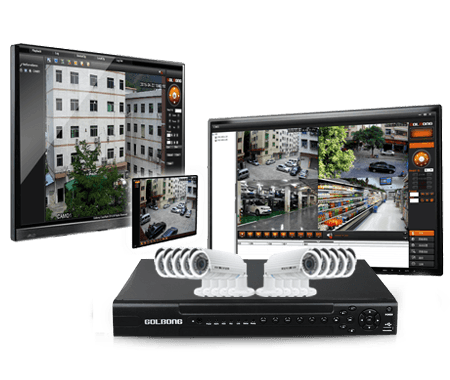

All in one system

The operator can use PoE NVR to record the live stream from camera, decode video feed for real time monitor, search footage for review.

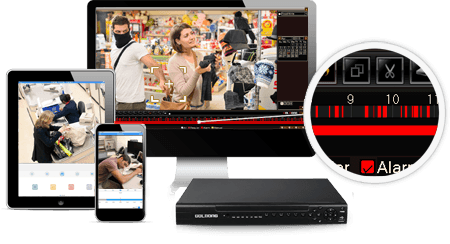

Motion recording and playback

The 3044 NVR can start record the video stream when the motion is detected by the camera. The operator doesn't need to playback all the footage, but only interests section.

Response to the IPC alarm

The 3044 PRO NVR can respsone the alarm input from Golbong IP cameras and generate immediately video popup on the screen.

Complete open

The users can integrate 3044 NVR with 3rd-party ip camera which support Onvif protocols. The motion record can accomplish as long as the camera has followed the message notification instruction.
