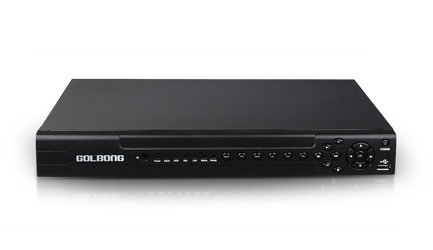

Gravadores Digital de Vídeo Híbridos 16 Canais

Keep the existed CCTV when upgrading to IP

The user can migrate the old CCTV cameras to 3566 hybrid recorder, perserve the existed asset and make the IP transfer smoothly.

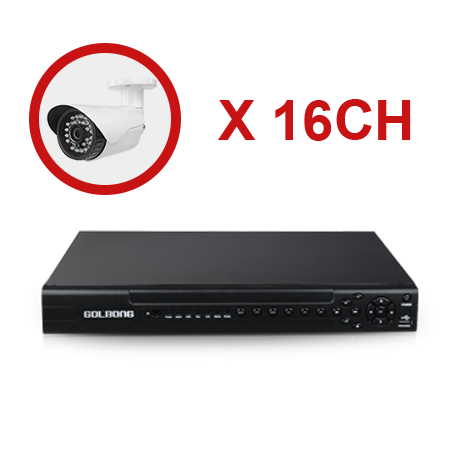

Future proof

The user can switch 3566 Hybrid Recorder to a pure NVR with its capaiblity of taking in 16-channel IP video from IP cameras.

All-in-One System

The operator can use 3566 Hybrid Recorder to record the live stream from cameras, decode video feed for real time monitor, and search footage for review.

Motion recording and playback

The 3566 Hybrid Recorder can start record the video stream when the motion is detected by the camera. The operator doesn't need to playback all the footage, but only interests section.

Mass Storage

The 3566 Hybrid Recorder is capable of taking 2 unit hard disk with 12 TB space which can keep recording 16 channels more than 20 days in 1080p resolution.

Complete open

The users can integrate 3566 Hybrid Recorder with 3rd party ip camera which support Onvif protocols. The motion record can accomplish as long as the camera has followed the message notification instruction.

Rated Voltage and Power
Rated Voltage and Power	110–240 VAC; 50/60 Hz; 1.5A
External power adapter DC output	DC12V 4A
Video
Video Standard	PAL or NTSC
Compression	H.264
Outputs	VGA/HDMI
Inputs	16 composite video 1 Vpp 75 ohm automatic termination
Audio
Inputs	6 line in , mono RCA,1 Vpp, 10 kohm
Output	1 line out, mono RCA, 1 Vpp, 10 kohm
Compression	G.711
Sampling rate	8 kHz per channel
Monitors
VGA/HDMI	Live, playback, menus
Live Resolution	SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080 PAL: 704x576, NTSC: 704x480
Display Modes
Screen	Full, full sequence, quad, multi-screen (live and playback), event call-up (live)
Frame rate PAL/ NTSC	25/30 IPS per channel (real time)
Multi-screen mode 4 channels	1, 2x2, 3x3, 4x4
Digital Zoom	Yes
Display languages	Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI
Alarm Handling
Inputs	Screw terminal, 4 inputs, configurable NO/NC,
Outputs	1 output
Events	Motion detect, Video Blind, Video Loss, IPC Alarm, Local Alarm
Remote notification	Via Control Center software, email, Push message
Malfunction relay	Disk space low, IP conflict, Disk failures
Connections
Ethernet	10/100Base-T, auto-sensing, half/full duplex, RJ45
USB	Three USB 2.0 ports
Network
Protocols	HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP
Cameras	Analog: 16CH 1080p @12fps Hybrid: 8CH 1080p @12fps + 8 IP 1080p NVR mode: 32 IP 1080p or 4 IP 5MP
Supported IP H.264 devices	Golbong IP Cameras, Onvif 2.0 compliance IPC
Storage
Internal HDD	2 unit
Redundancy	Yes
Exporting
USB	Flash memory
Network	Golbong Software
Security
Password protection	Multi-level
Recording
Overwrite modes	Continuous, overwrite
Playback
Decoding Capacity	16-CH
Playback function	Fast forward/reverse, frame forward /reverse,freeze
Digital Zoom	yes
Search mode	Date/time, Event (motion, input)
Mechanical
Dimensions (W x D x H) (excluding cabling)	350(L) x 44(H) x 296(W)
Weight	TBA
Environmental
Operating temperature	+5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature	-25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity	Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
Hybrid Network Video Recorder	3566
