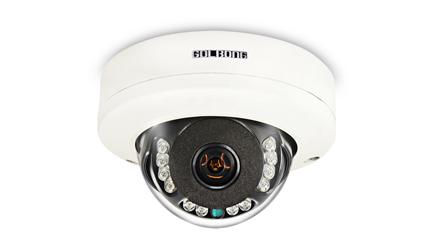

Mini Câmera Dome AHD 2MP

Mini Câmera Dome AHD 2MP

Modelo:3433-29
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080
Lens: 2.8mm lens
Frame: 30fps/NTSC
 0 (0)
Descrição
Specification
Power
Input voltage +12 VDC
Power consumption 6 W (max)
Video
Sensor type 1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels 1920x1080
Sensitivity 0.2 lx (IR off) 0 lx (IR on)
Resolution 1920x1080
Video Output 1 composite video 1 Vpp 75 ohm automatic termination
Day & Night photocells control
Shutter Auto (1/50(1/60)s to 1/10,000s)
AGC Auto
Night vision
Distance 8 m
LED 12 LED high efficiency array, 850 nm
Lens
Lens type 2.8mm
Field of View H: 92°
Lens mount Board mounted
Day & Night Auto ICR Switch
Mechanical
Dimensions Diameter: 98 mm Height: 63mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
1080p Coaxial Analog HD Dome Camera 3433-29
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Mini Câmera Dome AHD 2MP

Modelo:3433-29
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080
Lens: 2.8mm lens
Frame: 30fps/NTSC
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

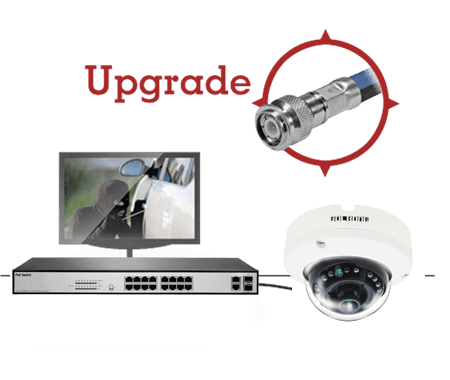

Re-use the coxial cable

The user can re-use existed coaxil cable to ugprade the analog system to HD CCTV with 3433-29 camera.

HD Image Detail

The 3433-29 camera can provide image detailed in 2MP HD resolution with its 1/2.8 inch EXMOR CMOS sensor.

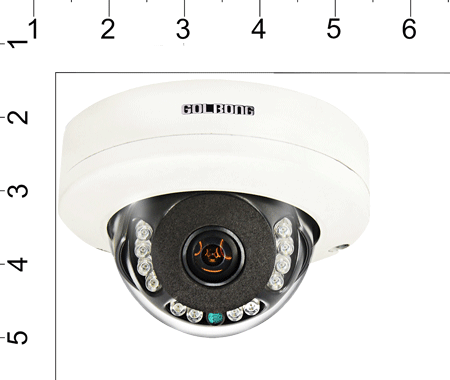

Discreet design

The discreet design make the camera easy to blend into business environment. The customer will more feel comfortable without seeing the camera shooting on them.

Night vision

The 3433-29 camera can capture clear image at night with its built-in infrared LEDs.

Ultra Wide Angle View

Users can deploy 3433-29 camera to cover wide area with activities monitoring.
