0 (0) | Power | |
| Input voltage | +12 VDC or Power-over-Ethernet |
| Power consumption | 4.5 W (max) |
| Video | |
| Sensor type | 1/3-inch CMOS |
| Sensor pixels | 2048x1536 |
| Sensitivity | 0.5 lx (IR off) |
| Main-stream Resolution | 1920*1080 @20fps (Dewarpped); |
| Sub-steam Resolution | 4CIF@20fps; CIF@25fps |
| Video compression | H.264 MP (Main Profile) |
| DWDR | On/Off |
| 3D DNR | Yes |
| Night vision | |
| Infrared LEDs | N/A |
| Lens | |
| Lens type | 1.42 mm |

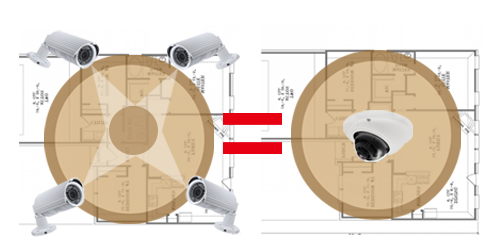

| Field of View | 360º or 180º |
| Lens mount | Board mounted |
| Day & Night | Auto ICR Switch (IR correction filter) |
| Connection | |
| Alarm input (optional) | 1 alarm in |
| Alarm out (optional) | N/A |
| Audio (optional) | |
| Audio input | RCA jack connector |
| Audio output | RCA jack connector |
| Audio communication | Two-way, full duplex |
| Audio compression | G.711 (live and recording) |
| Local Storage (optional) | |
| Memory card slot | Supports up to 128 GB micro SD card (An SD card of Class 10 or higher is recommended for HD recording) |
| Recording | Continuous recording, Motion/schedule recording |
| Software Control | |
| Unit configuration | Via web browser or PC surveillance software |
| Network | |
| Protocols | HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x |
| Ethernet | 10/100 Base-T, auto-sensing, half/full duplex, RJ45 |
| Wireless | N/A |

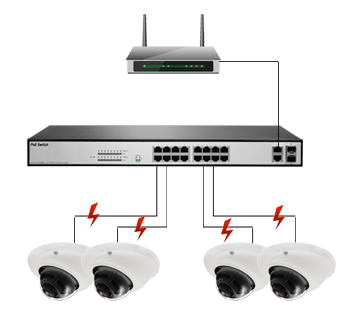

| PoE | IEEE 802.3af compliant |
| Mechanical | |
| Dimensions | Diameter: 120 mm Height: 54 mm |
| Weight | TBA |
| Environmental | |
| Operating temperature Camera | -20 ºC to +55 ºC (-4 ºF to +131 ºF) |
| Storage temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) |
| Humidity | 10% to 80% relative humidity (non condensing) |
| Ordering Information | |

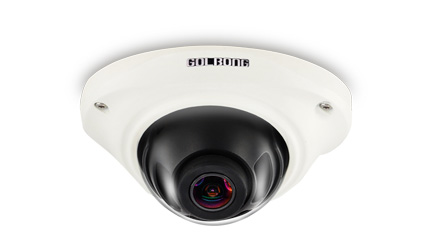

| Fishsye IP Dome,1.42 mm lens | 2545-15 |
| * Local Storage function is optional | |
