Mini Câmera Veiculares 1.3MP

The 4089-51 camera can deliver image detailed in 960p HD resolution with its 1/2.8 inch EXMOR sensor.

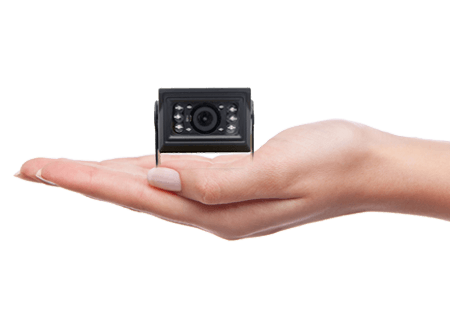

The compact design can improve the customers experience in the vehicle.

The 4089-51 camera can stand the vibration in the vehicle.

Users can deploy 4089-51 camera to cover 103 degree wide area in front or rear of the vehicle.

The 4089-51 camera can capture clear image at night with its built-in infrared LEDs. "

Power
Input voltage	+12 VDC
Power consumption	6 W (max)
Video
Sensor type	1/2.8 inch Type Low lux CMOS Sensor
Sensor pixels	1280x960
Sensitivity	0.1 lx (IR off) 0 lx (IR on)
Resolution	1280x960
Video Output	4-pin DJ M12
Day & Night	photocells control
Shutter	Auto (1/50(1/60)s to 1/10,000s)
AGC	Auto
Night vision
Distance	<5 m
LED	8 LED high efficiency array, 850 nm
Lens
Lens type	2.1mm
Field of View	H: 110°
Lens mount	Board mounted
Day & Night	Auto ICR Switch
Mechanical
Dimensions	42(H)55(L)57(W)mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (non condensing)
Ordering Information
720p Coaxial Analog HD Vehicle Camera	4089-51
