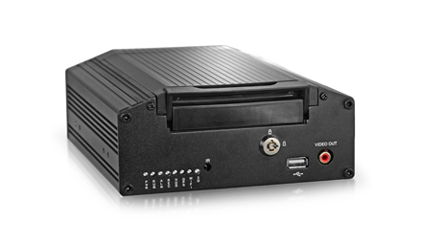

MDVR Veiculare HD 4 Canais

720p HD real time recorder

The 4012 recorder can recorder 4-channel 720p HD video at 30 frame per second in the vehicle.

Center Monitoring

The 4012 recorder can stream back the live feed, alarm status, GPS information to the monitor center with 3G network.

Automatic FTP backup

The 4012 recorder can automatic upload the footage to the FTP server when the vehicle arrive at the dock.

Anti-vibration Design

The 4012 camera can stand the vibration in the vehicle.

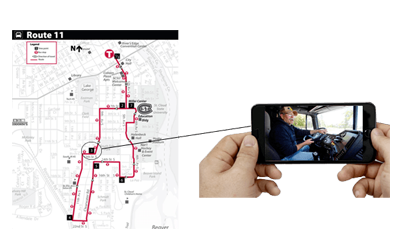

Mobile accessing

The operator can access the live feed with mobile phone using our cloud connection.

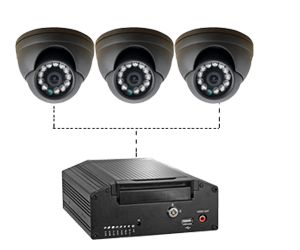

Simple setup

Users only need single cable to carry the power and signal to the camera with DJ anti-vibration terminal.

Rated Voltage and Power
Power Supply	Wide voltage input DC6V-36V
Video
Video Standard	PAL or NTSC
Compression	H.264
Digital Zoom	Yes
AGC	Automatic gain adjustment for each video input
Compression	H.264(Main Profile)
Inputs	4 Composite video 1 Vpp, 75 ohm; Pin Contacts
Outputs	1 RCA and 1line; Vpp, 75 ohm, sync. 0.3 V ±10%
Audio
Input	4 input Mono, 1.0 Vpp Pin Contacts
Output	1 output Mono RCA, 1.0 Vpp
Compression	G711
Sample rate	16 kHz per channel
Bit rate	8-bit
Alarm Handling
Inputs	4ch High/Low signals 2ch NC/NO
Outputs	1ch
GPIO
Inputs	Support speed, turn light, brake signals input; Vehicle information OSD overlay
Control
RS485	Yes
Connectors
Video Inputs	4 Pin Contacts
Monitor	Pin output and front output
Audio Inputs	4 Pin Contacts
Audio Output	1 Pin Contacts
Network Ethernet	N/A
Network 3G	WCMDA (Optional)
Network WIFI	802.11b/g (optional)
GPS	GPS location tracking, speed detection and sync time (optional)
USB	USB 2.0 for USB memory backup (with Remote control)
Storage
Internal HDD	1 unit 2.5inch SATA HDD
Exporting
USB	Flash memory
Security
Password protection	Multi-level
Video recording
Main Stream 4 channels
720p	PAL: 25 IPS, NTSC: 30 IPS
4CIF	PAL: 25 IPS, NTSC: 30 IPS
Sub Stream
CIF/QCIF	depend-on Main Stream
Display Modes
Screen	Full, quad (live and playback), Full sequence, alarm call-up (live)
Decoding capability	1CH 720p
Recording Modes
Normal	Continuous recording (with or without overwriting)
Event	motion, scheudle alarm recording
Mechanical
Dimensions (WxDxH) excluding cabling	193(L) x 198(H) x 86(W)
Environmental
Temperature
- Operating	+0°C to +40°C (+32°F to +104°F)
- Storage	-40°C to +70°C (-40°F to +158°F)
Humidity
- Operating	<93% non-condensing
- Storage	<95% non-condensing
Ordering Information
4CH Analog HD Vehicle Recorder	4012
