Testador de CFTV e Redes
Modelo:5550Testador de CFTV e Redes
5550
-
Descrição
-
Especificações
-
Documento
-
Comentário
-
Pergunta e resposta

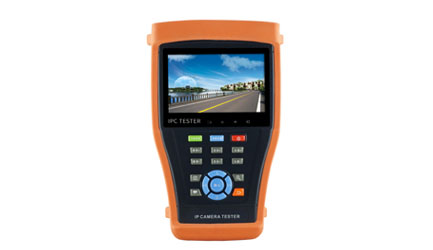

Setup IP camera easily
The user can have local image display at the installation point using 5550 IP tester.
Power the IP camera
The user can power IP camera front-end with built-in Lithium polymer battery.
Onvif Support
The 5550 IP tester can work with different IP cameras which support Onvif protocols.
Ease of use

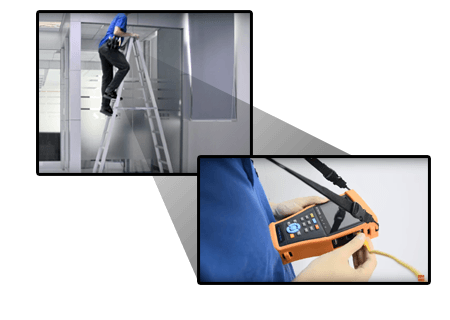

User can carry the IP tester with band and make the installation on the ladder.
| General | |
| Display | 4.3 inch Capacitive touch screen , resolution 800（ RGB） x 480 |
| Network port | 10/100M auto adapt,RJ45 |
| WIFI | Built in WIFI,speeds150M,display wireless camera image |
| SDI camera test (Optional) | 1 channel SDI IN BNC Input ,Support resolution 720p 60fps / 1080p 30fps /1080i 60fps |
| Video Signal test | 1 channel Video IN BNC input,1 channel Video OUT BNC output,support PAL/NTSC |
| Video level meter | PEAK video signal level, SYNC signal level, Color bar chroma level measurement |
| Zoom Image | Support Analog camera and IP camera image zoom /move |
| Snapshot,Video record and | playback Image Screen snapshot, record ,save ,view and record and play back |
| HDMI output | 1 channel HDMI output,support 1920*1080P |
| PoE power output | 48V PoE power output,Max power 24W |

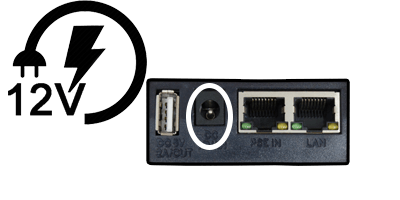

| 12V/2Apower output | Output DC12V/2A power for camera |
| USB 5V power output | 5V 2A power output,as a Power bank |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| PTZ control | Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
| Network test | IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address |
| Cable finder | Search the cable by the audio signal |
| PoE/PSE test | Measurement POE switch or PSE power supply voltage and cable connection status |
| Digital Multi-meter (optional)* | AC/DC Voltage,AC/DC current、Resistance、Capacitance、 Data hold、Relative measurement、Continuity testing .Testingspeed: 3 times/ seconds,Data range -6600～+6600. |
| Optical power meter (Optional) | Calibrated Wavelength(nm) ： 850/1300/1310/1490/1550/1625nm Power range(dBm) ： -70～+10dBm |
| Visual fault locator (optional) | Test fiber’s bending and breakage ( SM and MM fiber) |
| TDR cable test(optional) | Cable length and short circuit measurement(BNC cable, Coaxial cable, Cat5/6, telephone cable) |
| POWER | |
| External power supply | DC 12V（ 2A） |
| Battery | Built-in 7.4V Lithium polymer battery , 5000mAh |
| Rechargeable | After charging 7~8 hours, normal working time 16 hours |
| Parameter | |
| Operation setting | Capacitive touch screen, OSD menu,Chinese/English |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension | 212mm×135.5mm×56.5mm |
| Weight | 0.75Kg |
| Ordering Information | |
| IP Camera Tester | 5550 |
-
Liberado Data:09/10/2016
