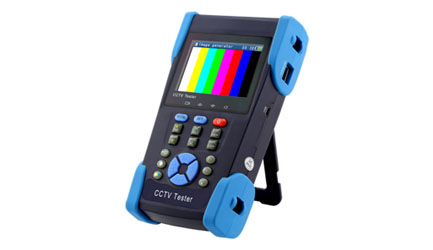

Testador de CFTV

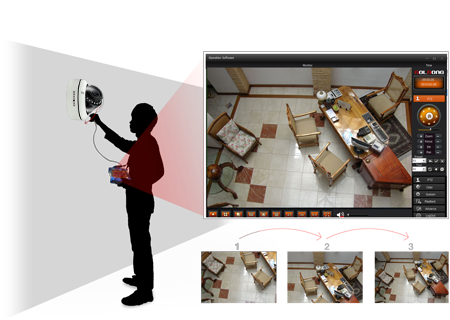

Setup analog HD camera easily

The user can have local image display from AHD, TVI or CVI analog HD camera.

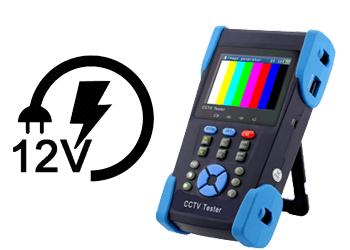

Power the HD camera

The user can power camera front-end with built-in Lithium polymer battery.

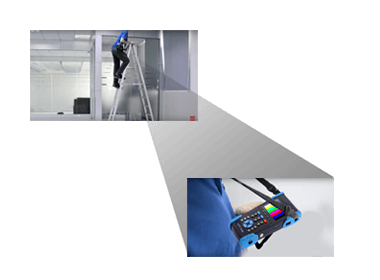

Ease of use

User can carry the 5551 tester with band and make the installation on the ladder.

Cable testing

The user can test LAN cable or telephone cable with 5551 tester.

Video Test
Signal mode	NTSC/PAL (Auto adapt)
Display	3.5 inch digital TFT-LCD ,480（RGB）x 320 resolution
LCD adjustment	Brightness, Contrast, Saturation adjustable
Video IN/OUT	1 channel BNC Input & 1 channel Output
Video Output Mode	1.0 Vp-p
Video Level test
Level test	Video signals measured in IRE or mV (not for TVI,CVI ,AHD)
PTZ controller
Communication	Support RS485
PTZ Protocol	Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate	600，1200，2400，4800，9600，19200,57600,115200bps
Video signal generation
Color bar generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )
UTP cable tester
UTP cable test	Test UTP cable connection status and display in the screen. Read the number of the test box.
DC12V 1A power output
DC12V power output	Output DC12V1A power for camera
Audio input test
Audio input test	test the pickup and other audio equipments on the front-end
RS485 data analysis
Data Monitor	Captures and analyzes the command data from controlling device
Video Test
CVI video signal test	1 channel CVI in（BNC interface）support 720p 25/30/50/60fps,1080p 25/30fps,camera OSD menu control over coaxial cable
TVI video signal test	1 channel TVI in（BNC interface） support 720p 25/30/50/60fps,1080p 25/30fps,camera OSD menu control over coaxial cable
AHD video signal test	1 channel AHD in (BNC interface）support AHD 2.0 version, 720p 25/30fps,1080p 25/30fps,camera OSD menu control over coaxial cable
POWER
Power Adapter	DC 5V（1.5A）
Battery	Built-in 3.7V Lithium polymer battery ,3000mAh
Rechargeable	After charging 3-4 hour, working time lasts 11 hours
Low Consumption	Energy saving technology, the battery icon real-time display
Parameter
Operation setting	English/Chinese and other languages OSD menu
Auto off	5-60 (mins)
Keytone	On/Off
General
Working Temperature	-10℃ ～+50℃
Working Humidity	30%～ 90%
Dimension	194mm x 112mm x 48mm
Weight	540g
Ordering Information
AHD TVI CVI Camera Tester	5551
