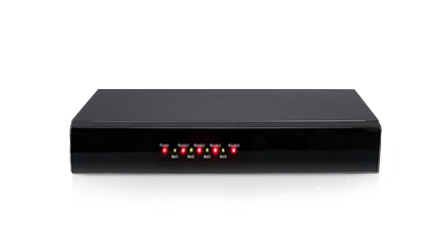

Decodificador IP com 4 Saída do monitor

The Decoder can stream the video from the IP cameras, DVRs, NVRs and output to the TV wall.

The operator can program the layout with PC software and save sequences to the decoders.

The operator can create emergency plans with PC software, switch to the plan when the emergency come up on the field.

The decoder can decode 32-channel IP video, output to 4 different monitor simultaneously.

The decoder can work with 3rd-party ip camera basing on onvif protocols.

Rated Voltage and Power
Rated Voltage and Power	110–240 VAC; 50/60 Hz; 1.5A
External power adapter	DC12V/2A
Video
Video Standard	PAL or NTSC
Compression	H.264
Max. IP Connecting	8CH 1080P/ 16CH 720P/ 32CH D1
Outputs	HDMI/VGA/BNC
Audio
Inputs	N/A
Output	4 line out, ono RCA, 1 Vpp, 10 kohm
Compression	G.711
Sampling rate	8 kHz per channel
Monitors
HDMI/VGA/BNC	Live, menus
Live Resolution	SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080 PAL: 704x576, NTSC: 704x480
Connections
Ethernet	10/100 Base-T, auto-sensing, half/full duplex, RJ45
USB	4 USB 2.0
HDMI	4 HDMI
VGA	4 VGA
BNC	4 BNC
Network
Supported devices	Golbong IP Cameras, NVR, DVR, Onvif IP camera
Mechanical
Dimensions (W x D x H) (excluding cabling)	350(L) x 295(H) x 45(W)mm
Weight	TBA
Environmental
Operating temperature	+5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature	-25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity	Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
Digital Video Decoder	5808
