Servidor de Gerenciamento Central IP 2046 Canais

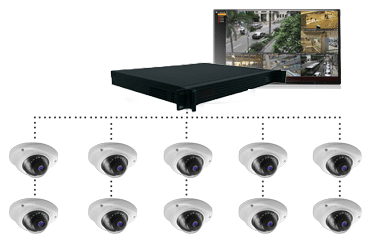

The Center server can connect Golbong IP cameras, NVRs, and DVRs on multi-sites without know each of its IP address.

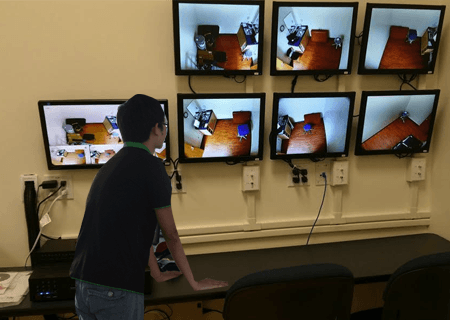

The operator can configure each IP camera, NVR, or DVR on the site from the monitoring center.

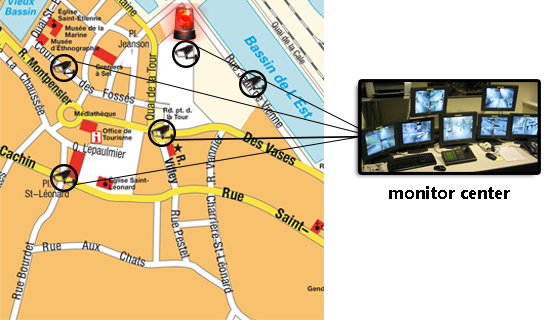

The operator can read the status of each IP devices on multi-sites, receiving alarm message from motion detection, alarm I/O.

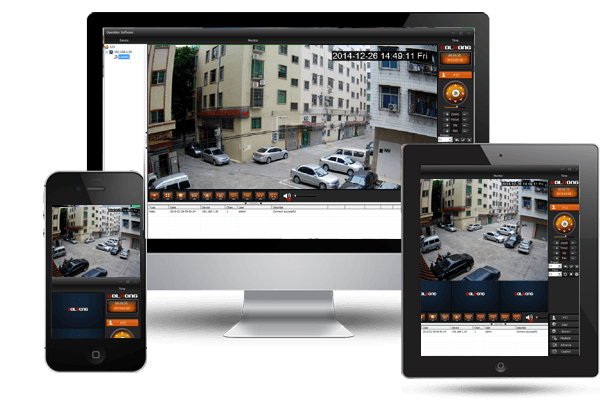

The center server can re-generate 256CH/32CH video and streams to the network for remote accessing.

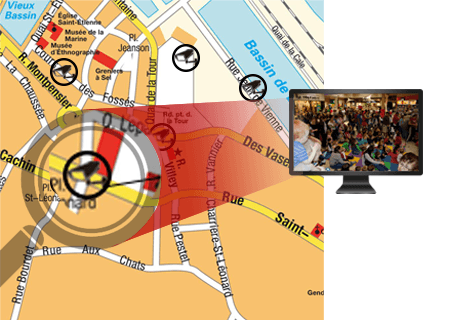

The operator can find the right video recording on the cameras or recorders from the monitoring center.

The operator can create unlimited accounts and assign the specific cameras for each users to access remotely.

The users can access the re-generated feed from mobile phone anywhere.

Rated Voltage and Power
Rated Voltage	180V~240V，47Hz~63Hz
Power	400W
Video
Video Standard	PAL or NTSC
Compression	H.264/H.265
Max. IP Connecting	2046 channels
Max. video re-generating	5801: 256 channels @ 3M bit rate 5802: 32 channels @ 2M bit rate
Decoding Outputs	N/A (works with decoder)
Audio
Inputs	1 line in , mono RCA,1 Vpp, 10 kohm
Output	1 line out, ono RCA, 1 Vpp, 10 kohm
Compression	G.711
Sampling rate	8 kHz per channel
Monitors
VGA/HDMI	Devices Management
Live Resolution	SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080 PAL: 704x576, NTSC: 704x480
Connections
Ethernet	10/100/1000 Base-T, auto-sensing, half/full duplex, RJ45
USB	Two USB 2.0 ports front four USB 2.0 ports rear
Network
Supported devices	Golbong IP Cameras, NVR, DVR
Mechanical
Dimensions (W x D x H) (excluding cabling)	420(L) x 430(H) x 45(W)mm
Weight	8.0kg
Environmental
Operating temperature	+5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature	-25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity	Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information

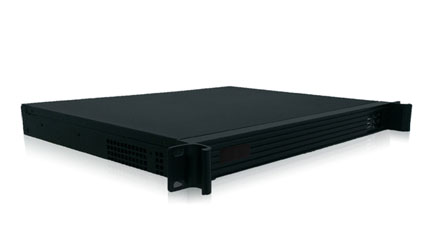

Center Server 2046-channel	5801
