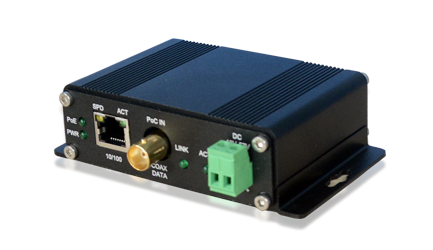

PoE + Receptor Coaxial

The user can re-use existed coax cable to ugprade the analog system to full HD IP video system.

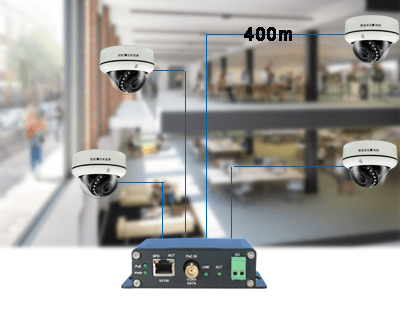

The coax adaptor can carry 4-channel HD ip video up to 400 meters with its 100 + 100 Mbps symmetrical network.

The user can enable PoE+ over coax with external DC input.

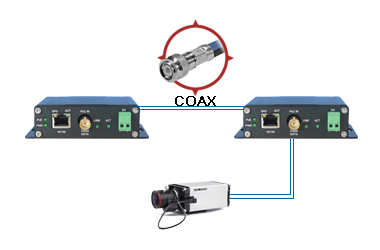

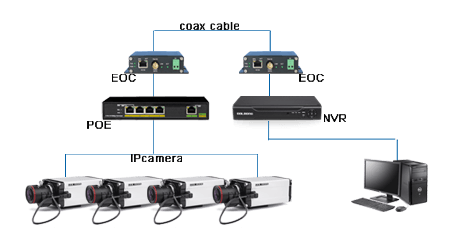

The user can simple plug adaptor to both side of coax and build the network over coax.

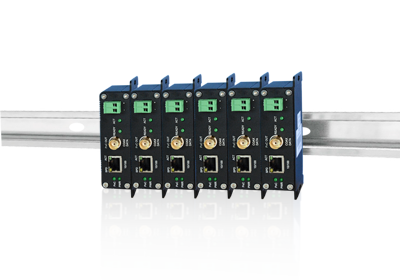

The user can choose either wall mount or dinrail mount the coax adaptor.

Data & Power
Data rate	Coaxial cable: 90+90 Mbps symmetrical Ethernet cable: 100 Base-TX Full Duplex
Connectors	Coaxial: BNC 75 Ohm Ethernet: Shielded RJ45, EIA 568A and 568B DC: Optional DC 48V Input
Max. output power	5460-18: PoE over Coax with safe auto-detection and auto-cutout * optional external DC input to enable PoE+ over coax
Input power	5460-18: Powered by PoE or optional DC input to enable PoE+ over coax
Installation and management	Plug-and-play installation; Automatically detects PoE and PoE+ enabled devices and supplies in-line power
General
Display and indicators	LED indicators are located on the panel and RJ45 connector Network indicators: Coax link, activity x2, Power indicators: PoE over Coax, PoE to camera
Compliance	IEEE 802.3af, IEEE 802.3at (required external DC48V 1.5A)
Mounting	Wall, Din Rail (optional)
Environment	Indoor
Dimensions (W x D x H) (excluding cabling)	105.4(L) x 63.5(H) x 30.5(W)
Operating temperature	-10 °C to +55 °C
Storage temperature	-25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity	Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
PoE+ over Coax Adaptor Kit	5460-18
* DC48V external Power is required to enable IEEE802.3at
* DC48V external power supply is not included
