Câmera de Moldura da porta AHD

Face Capture Setup

The user can install 2646-83 camera on the door frame to capture the face detail.

HD Image Detail

The 2646-83 door frame camera can provide image detailed in 2MP HD resolution with its 1/2.8 inch CMOS sensor.

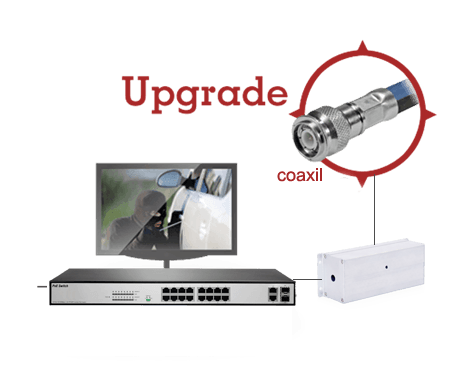

Re-use the coxial cable

The user can re-use existed coaxil cable to ugprade the analog system to HD CCTV with 2646-83 door frame camera.

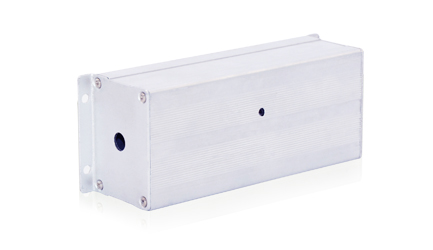

Covert Design

The discreet design make the camera easy to blend into business environment. The customer will more feel comfortable without seeing the camera shooting on them.

Power
Input voltage	+12 VDC
Power consumption	4.5 W (max)
Video
Sensor type	1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels	1920x1080
Sensitivity	1.0 lx (IR off)
Resolution	1920x1080
Video Output	1 composite video 1 Vpp 75 ohm automatic termination
Day & Night	photocells control
Shutter	Auto (1/50(1/60)s to 1/10,000s)
AGC	Auto
Night vision
Infrared	N/A
Lens
Lens type	3.7mm
Field of View	H: 82°
Lens mount	Board mounted
Day & Night	Auto IR Cut filter
Mechanical
Dimensions	1405238mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (noncondensing)
Ordering Information
AHD Door Frame Camera	2646-83
