CMS5

Complete setup in minutes, not an hour

The users can setup the ip system with quick set module which will assign the IP address and make the connection to each cameras automatically.

All in one system

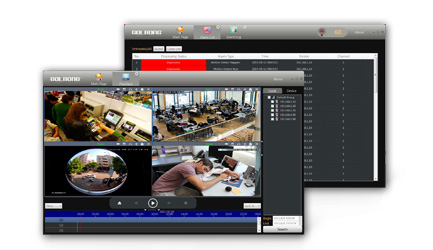

The operator can use CMS5 to record the live stream from camera, decode video feed for real time monitor, search footage for review.

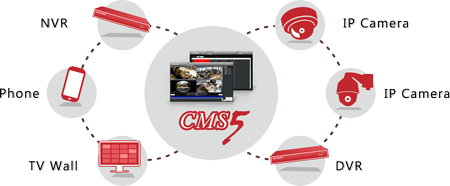

Manage IP camera, NVR/DVR

The operator can manage golbong IP camera, NVR, DVR with CMS5.

Onvif Profile-S

The users can use CMS5 to monitor with 3rd-party ip camera which support Onvif protocols.

General
Maximum Number of Cameras	Unlimited (Please Refer to System Requirements Below)
Support OS	Windows 8, 7, Vista, XPWindows Server 2012, 2008, 2003, 2000
LiveView (Local Display)
Max. Channel	64-Channel (With dual monitor)
Layout	Multi Layout display: 1x1, 2x2, 1+5, 1+7, 3x3, 1+12, 4x4, 5x5, 66, 88, Single Layout display, Full screen display, Sequential display
Stream Application	Stream Selection
Playback
Max. Channel	9 Channel
Layout	Multi Layout display: 1x1, 2x2, 3x3, Single Layout display, Full screen display
Playback Mode	Server & On-board Storage
Playback Control	Play, Rewind, Pause, Stop, Next / Previous Video Start, Speed Control
Search Mode	Date & Time, Timeline Event, Alarm, Timeline
Video
Video Format	H.264 AVC, H.265
Video Resolution	Up to 5 Megapixel
Video Enhancement	Brightness, Hue, Contrast, Saturation
Audio
Audio Format	G.711
Audio Capability	Two Way
Audio Control	Mute & Sound Play
Record
Recording Stream	Single
Recording Mode	Continuous (Schedule, Manual, Event) *
Recording Setting	Recycle
Recording File Format	H.264 or H.265
Alarm Management
Alarm Setting	LiveView Alarm Notification, Alarm Count
eMap
Source	Import Picture *
Marked	Add, Remove, Indicator LiveView *
PTZ
PTZ Control	Panel Control
PTZ Operation	Direction Control, Zoom, Focus, Iris, Preset, Tour, Speed
Export
Snapshot	BMP
Export file	AVI
System
User Management	Authentication: Basic Account
Date & Time	Sync PC
Language	Czech, English, French, German, Italian, Japanese, Persian,Portuguese, Russian, Spanish, Simplified Chinese
Camera Integration
Camera Insert	Manual, Search, Auto discovery
Basic Setting	Date & Time, video standard, DST
Connection Setting	TCP/IP, DAS, Cloud, Email, FTP, DDNS, PPPoE, RTSP
Video Setting	Video Stream, Compression, Resolution, FPS, Video Quality
Audio Setting	On/Off
Event	Motion detection, Abnormal
Local Storage	Utilities, recording schedule
