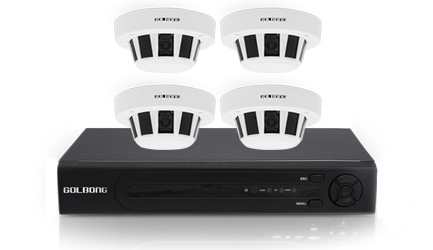

Kit de Câmera Camuflada Sensor De Fumaça com Gravadores PoE 4 Canais 1080p

Kit de Câmera Camuflada Sensor De Fumaça com Gravadores PoE 4 Canais 1080p

Modelo:4923-19
Imaging Device: 2.0MP 1/3” CMOS
Lens Type: 3.7mm pinhole lens F2.0
Video Compression:H.264
 0 (0)
Descrição
Specification
NVR Specification
Operating System Embedded LINUX
Pentaplex Simultaneous View, Record, Playback, Backup, and Remote Monitoring
Number of Channels 4
Inputs/Outputs
Video IN 4 PoE Video Input
Video OUT HDMI /VGA
Audio IN/Out N/A
USB Port 2 at the back (one USB 3.0)
Alarm IN/Out N/A
Video Output Resolution MAX 1080p
PTZ control IP PTZ cameras with Onvif profile-S
Display
Live Display 1, 2x2
Live Display Speed 120 NTSC, 100 PAL
OSD ON/OFF
System Navigation USB Mouse
Motion Area Setting Adjustable grid (22x18)
Sensitivity levels 1-6
Firmware Upgrade via USB device or network
User Authority By user group
Time Synchronization Auto time sync by NTP server
Recording
Video Compression H.264
Resolution 1080P (1920x1080), 720P (1280x720)
Record Rate NTSC: 120FPS @ 1080PPAL: 100FPS @ 1080P
Record Resolution Setting Per camera for different resolutions
Recording Quality 6 Levels
Record Schedule By hour, by day, by recording mode, by motion, by channel
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback
Playback Channel 1
Playback Speed Variable Max 8x
Search By time & event
Storage & Archive
Storage Up to 1 HDD (SATA)
Maximum Capacity Up to 1 x 6TB
Backup Media USB flash drive, HDD, & Network
Backup File Format H.264 or AVI file
Storage & Archive
Cloud Connection GOLBONG P2P Cloud
Supported OS Windows™, Mac OS
Remote Software GOLBONG Operation Software, CMS5
Email Notification Text
Instant Smart Phone & Tablet Support iPad®, iPhone®, Android™
System Configuration Auto or manual
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,PPPOE, DDNS, FTP, IP Filter
Network Interface 10/100–Base-TX, RJ-45
NVR General
Power Consumption 10 watts (No HDD Installed)
Supply Voltage 100VAC-240VAC, 48V DC, 1.5A,
Total PoE Power Output 50W (across all channels)
Camera
Imaging Device 2.0MP 1/3” CMOS
Effective Pixels 1920*1080
Day / Night Auto (ICR) / Color / B/W
Min. Illumination 0.5lux (Color); 0.05lux (B/W)
S/N Ratio >50dB
Field of View (H) 82°
Lens Type 3.7mm pinhole lens, F2.0
IR Illumination N/A
Video Output RJ45
Video
Video Compression H.264
Resolution 1080P (1920x1080), 720P (1280x720)
Aspect Ratio 0.672916666666667
Frame rates (Maximum) 2MP (1920*1080)@ 15fps
Bit Rate Selection Compression Type:56K~ 8129Kbps
Wide Dynamic Range Digital WDR
Backlight Compensation BLC / HLC / DWDR
Noise Reduction 3D
ONVIF Conformance Profile S (v2.1)
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Kit de Câmera Camuflada Sensor De Fumaça com Gravadores PoE 4 Canais 1080p

Modelo:4923-19
Imaging Device: 2.0MP 1/3” CMOS
Lens Type: 3.7mm pinhole lens F2.0
Video Compression:H.264
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

High definition image detail

The 4923-19 system can deliver image detailed in 2MP ultra HD resolution with its 1/3 inch CMOS sensor.

Covert design

Hidden inside the Smoke Detector housing make the camera undetectable. The customer will more feel comfortable without seeing the camera shooting on them.

Complete setup in minutes, not an hour

The users can setup the ip system with quick set module which will assign the IP address and make the connection to each cameras automatically.

Built in PoE switch

The PoE NVR can send the network and power to each camera with single cable. No need extra power source at cameras end.

Motion recording and playback

The 4923-19 system can start record the video stream when the motion is detected by the camera. The operator doesn't need to playback all the footage, but only interests section..
