How to Configure Video Encoding on Your CCTV Camera System
share...

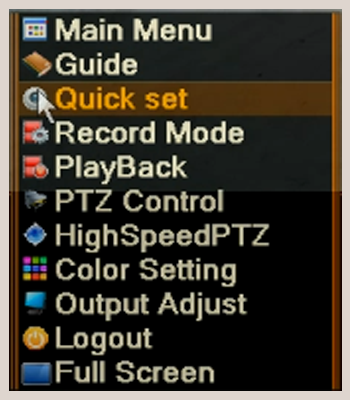

1.Right-click and select "Quick Set" from the menu.

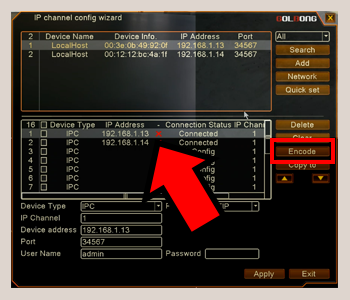

2.Select the device you are trying to configure encoding. Press "Encode" on the right side.

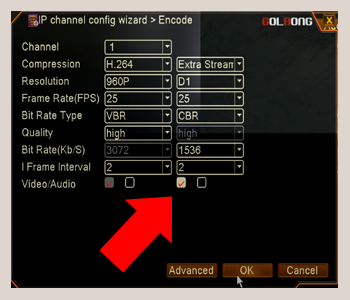

3.This options including adjusting the resolution, change recording frame rate, pick a video quality, turn on or off extra-stream for each camera channel. Click "OK".





NOTE: Audio recording dedicates to audio supported cameras. It must be connected to the RCA audio input at the back of the DVR.


NOTE: The extra stream must be enabled for mobile phone surveillance. Mark the third checkbox to enable the extra stream.

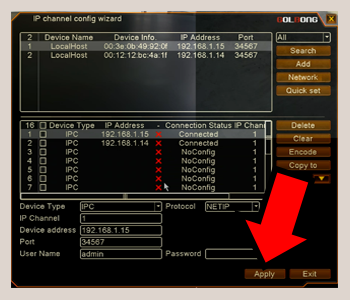

4. Click "Apply" and leave.
