0 (0) | Power | |
| Input voltage | +12 VDC |
| Power consumption | 6 W (max) |
| Video | |
| Sensor type | 1/2.8 Type SONY Exmor CMOS Sensor |
| Sensor pixels | 1920x1080 |
| Sensitivity | 0.2 lx (IR off) 0 lx (IR on) |
| Resolution | 1920x1080 |
| Video Output | 1 composite video 1 Vpp 75 ohm automatic termination |
| Day & Night | photocells control |
| Shutter | Auto (1/50(1/60)s to 1/10,000s) |
| AGC | Auto |
| Night vision | |
| Distance | 20 m |
| LED | 24 LED high efficiency array, 850 nm |
| Lens | |
| Lens type | Manual 2.8 to 12 mm, Fixed Iris F1.4 |
| Field of View | H: 85°- 26° |
| Lens mount | Board mounted |
| Day & Night | Auto ICR Switch (IR correction filter) |
| Mechanical | |
| Dimensions | Diameter: 133mm Height: 100 mm |
| Weight | TBA |
| Environmental | |
| Operating temperature Camera | -20 ºC to +55 ºC (-4 ºF to +131 ºF) |
| Storage temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) |
| Humidity | 10% to 80% relative humidity (non condensing) |
| Ordering Information | |

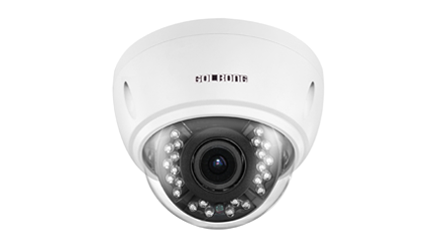

| 1080p Coaxial Analog HD Dome Camera | 3410 |
