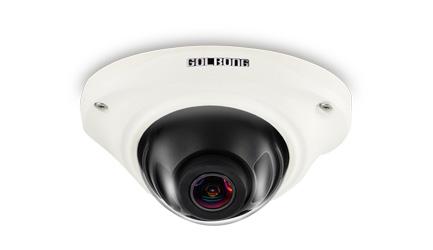

Eye-Level 180 Panoramic Dome

Eye-Level 180 Panoramic Dome

Model:2545-15
Sensor: 1/3" Low Lux CMOS
Pixel: 1920*1080 @ 20fps
Lens: 1.19mm
 0 (0)
Overview
Specification
Power
Input voltage +12 VDC or Power-over-Ethernet
Power consumption 4.5 W (max)
Video
Sensor type 1/3-inch CMOS
Sensor pixels 2048x1536
Sensitivity 0.5 lx (IR off)
Main-stream Resolution 1920*1080 @20fps (Dewarpped);
Sub-steam Resolution 4CIF@20fps; CIF@25fps
Video compression H.264 MP (Main Profile)
DWDR On/Off
3D DNR Yes
Night vision
Infrared LEDs N/A
Lens
Lens type 1.42 mm
Field of View 360º or 180º
Lens mount Board mounted
Day & Night Auto ICR Switch (IR correction filter)
Connection
Alarm input (optional) 1 alarm in
Alarm out (optional) N/A
Audio (optional)
Audio input RCA jack connector
Audio output RCA jack connector
Audio communication Two-way, full duplex
Audio compression G.711 (live and recording)
Local Storage (optional)
Memory card slot Supports up to 128 GB micro SD card (An SD card of Class 10 or higher is recommended for HD recording)
Recording Continuous recording, Motion/schedule recording
Software Control
Unit configuration Via web browser or PC surveillance software
Network
Protocols HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45
Wireless N/A
PoE IEEE 802.3af compliant
Mechanical
Dimensions Diameter: 120 mm Height: 54 mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
Fishsye IP Dome,1.42 mm lens 2545-15
* Local Storage function is optional
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

Eye-Level 180 Panoramic Dome

Model:2545-15
Sensor: 1/3" Low Lux CMOS
Pixel: 1920*1080 @ 20fps
Lens: 1.19mm
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

Eye-level Setup

The user can install 2545-15 camera on the wall to an eye-evel position to capture the face detail.

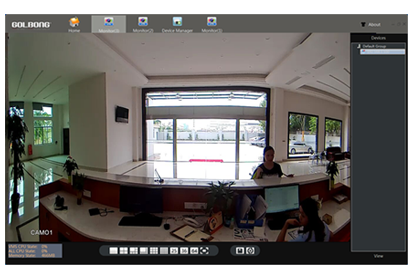

Panoramic view

The 2545-15 camera can deliver 180 degree Panoramic View and 360 degree Surround View with its built-in dewarpped engine.

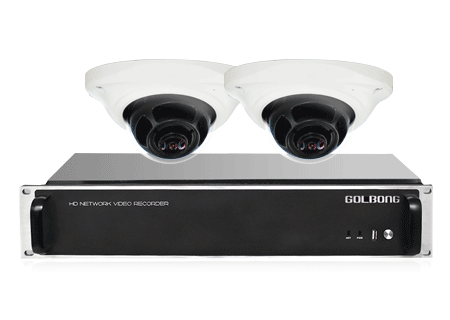

Working with regular NVR

The 2545-15 camera can work with regular NVR to record the dewarpped image.

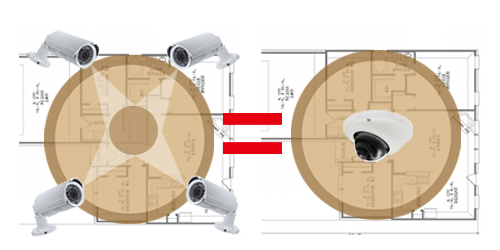

Flexible Coverage

The user can deploy single 2545-15 camera to cover multiple surveillance points.

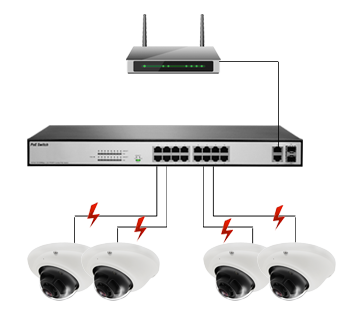

Simple setup

Users only need single cable to carry the power and network to the camera. The power will be separated from the network cable with POE function.
