2MP IP Eye-level Height Strip Camera

2MP IP Eye-level Height Strip Camera

Model:2645-48
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080
Lens: 3.7mm pinhole lens
Frame: 30fps/NTSC
 0 (0)
Overview
Specification
Power
Input voltage +12 VDC or Power-over-Ethernet
Power consumption 4.5 W (max)
Video
Sensor type 1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels 1920x1080
Sensitivity 1.0 lx (IR off)
Main-stream Resolution 1920x1080@25fps; 1280x720@25fps
Sub-steam Resolution 4CIF@25fps; CIF@25fps
Video compression H.264 MP (Main Profile)
DWDR ON/OFF
3D DNR Yes
Lens
Lens type 3.7 mm pinholel lens
Field of View H: 79º
Lens mount Board mounted
Day & Night Auto IR Cut filter
Connection
Analog video out N/A
Alarm input (optional) 1 alarm in
Alarm out (optional) 1 alarm out
Audio (optional)
Audio input RCA jack connector
Audio output RCA jack connector
Audio communication Two-way, full duplex
Audio compression G.711 (live and recording)
Local Storage
Memory card slot Supports up to 128 GB micro SD card (An SD card of Class 8 or higher is recommended for HD recording)
Recording Continuous recording, Motion/schedule recording
Software Control
Unit configuration Via web browser or PC surveillance software
Network
Protocols HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45
Wireless IEEE 802.11b/g/n
PoE N/A
Mechanical
Dimensions 870*52*38mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
IP Mini Height Strip Camera; on-board storage, 2645-48
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

2MP IP Eye-level Height Strip Camera

Model:2645-48
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080
Lens: 3.7mm pinhole lens
Frame: 30fps/NTSC
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

Eye-level Setup

The user can install 2645-48 height strip camera on the door frame to capture the face detail.

HD Image Detail

The 2645-48 height strip camera can provide image detailed in 2MP HD resolution with its 1/2.8 inch CMOS sensor.

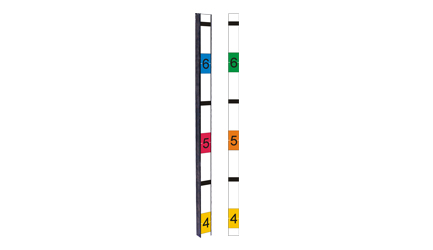

Covert Design

The discreet design make the camera easy to blend into business environment. The customer will more feel comfortable without seeing the camera shooting on them.

All-in-one camera system

Users can choose either deploying heigh strip camera standalone or add the camera to the existed surveillance system. The footage can be recorded in the TF card inside the camera. Users don't need to take off memory card to retrieve the footage, They can access the camera remotely over the network connection.

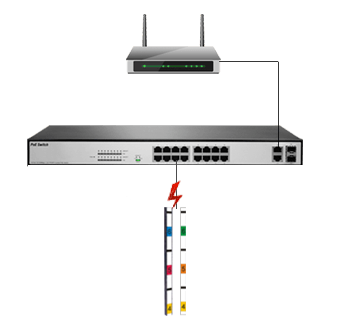

Simple setup

Users only need single cable to carry the power and network to the 2645-48 height strip camera. The power will be separated from the network cable with POE function.
