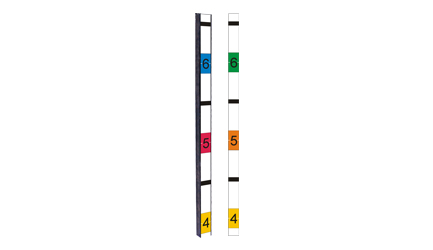

2MP AHD Eye-level Height Strip Camera

2MP AHD Eye-level Height Strip Camera

Model:2645-83
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080
Lens: 3.7mm pinhole lens
Frame: 30fps/NTSC
 0 (0)
Overview
Specification
Power
Input voltage +12 VDC
Power consumption 4.5 W (max)
Video
Sensor type 1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels 1920x1080
Sensitivity 1.0 lx (IR off)
Resolution 1920x1080
Video Output 1 composite video 1 Vpp 75 ohm automatic termination
Day & Night photocells control
Shutter Auto (1/50(1/60)s to 1/10,000s)
AGC Auto
Night vision
Infrared N/A
Lens
Lens type 3.7mm
Field of View H: 77°
Lens mount Board mounted
Day & Night Auto IR Cut filter
Mechanical
Dimensions 870*52*38mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
AHD Mini Height Strip Camera 2645-83
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

2MP AHD Eye-level Height Strip Camera

Model:2645-83
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080
Lens: 3.7mm pinhole lens
Frame: 30fps/NTSC
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

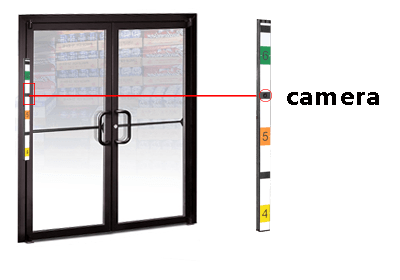

Eye-level Setup

The user can install 2645-83 height strip camera on the door frame to capture the face detail.

HD Image Detail

The 2645-83 height strip camera can provide image detailed in 2MP HD resolution with its 1/2.8 inch CMOS sensor.

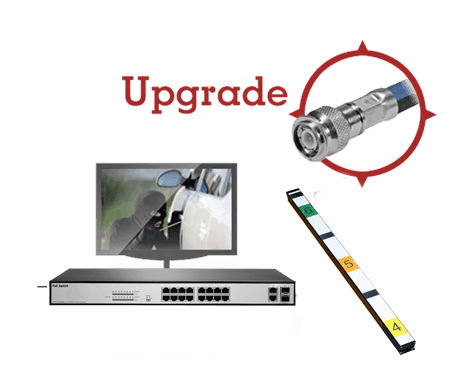

Re-use the coxial cable

The user can re-use existed coaxil cable to ugprade the analog system to HD CCTV with 2645-83 height strip camera.

Covert Design

The discreet design make the camera easy to blend into business environment. The customer will more feel comfortable without seeing the camera shooting on them.
