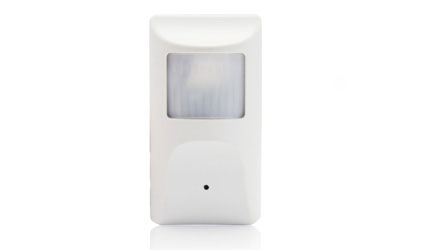

1.3MP AHD PIR Camera

Covert design

The users can have advances for their investigation by setting up a 2643-83 AHD PIR camera. Hidden inside the PIR housing and invisible infrared make the camera undetectable.

HD Image Detail

The 2643-83 AHD PIR camera can provide image detailed in 1.3mp HD resolution with its 1/3 inch EXMOR CMOS sensor.

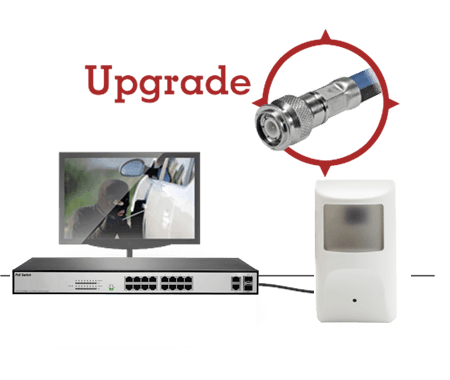

Re-use the coxial cable

The user can re-use existed coaxil cable to ugprade the analog system to HD CCTV with 2643-83 AHD PIR camera.

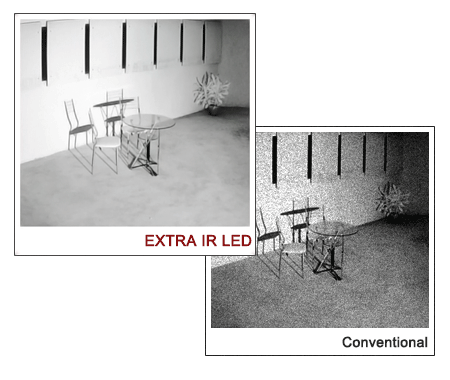

Night vision

The 2643-83 AHD PIR camera is able to see the external infrared at night with built-in IR cut filter and photocells control.

Power
Input voltage	+12 VDC
Power consumption	6.0 W (max)
Video
Sensor type	1/3 Type SONY Exmor CMOS Sensor
Sensor pixels	1280x960
Sensitivity	1.0 lx (IR off) 0 lx (IR on)
Resolution	1280x960
Video Output	1 composite video 1 Vpp 75 ohm automatic termination
Day & Night	Auto ICR Switch
Shutter	Auto (1/50(1/60)s to 1/10,000s)
AGC	Auto
Night vision
LED	N/A
Lens
Lens type	3.7mm
Field of View	H: 76°
Lens mount	Board mounted
Day & Night	Auto
Mechanical
Dimensions	1307050mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (non condensing)
Ordering Information
AHD Mini PIR Camera	2643-83
