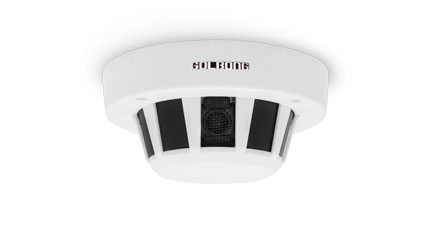

2MP IP Smoke Detector Camera

Covert design

The users can have advances for their investigation by setting up a 2652-57 IP Smoke Detector Covert Camera. Hidden inside the Smoke Detector housing make the camera undetectable.

Moving object capturing

2652-57 IP Smoke Detector Covert Camera. is capable of capturing moving objects and deliver less blurry image which is value for POS area, entrance or exit.

HD Image Detail

The 2652-57 IP Smoke Detector Covert Camera. can provide image detailed in 2MP HD resolution with its 1/2.8 inch CMOS sensor.

Night Vision

2652-57 IP Smoke Detector Covert Camera is able to see the external infrared at night with built-in IR cut filter and photocells control.

All-in-one camera system

Users can choose either deploying camera standalone or add the camera to the existed surveillance system. The footage can be recorded in the TF card inside the camera. Users don't need to take off memory card to retrieve the footage, They can access the camera remotely over the network connection.

Simple setup

Users only need single cable to carry the power and network to the camera. The power will be separated from the network cable with POE function

Power
Input voltage	+12 VDC or Power-over-Ethernet
Power consumption	6.0 W (max)
Video
Sensor type	1/2.8 Type CMOS Sensor
Sensor pixels	1920x1080
Sensitivity	0.5 lx (IR off)0 lx (IR on)
Main-stream Resolution	1920x1080@25fps; 1280x720@25fps
Sub-steam Resolution	4CIF@25fps; CIF@25fps
Video compression	H.265/H.264 MP (Main Profile)
DWDR	ON/OFF
3D DNR	Yes
Night vision
LED	N/A
Lens
Lens type	3.7 mm pinholel lens
Field of View	H: 77º
Lens mount	Board mounted
Day & Night	Auto ICR Switch
Connection
Analog video out	N/A
Alarm input (optional)	1 alarm in
Alarm out (optional)	1 alarm out
Audio (optional)
Audio input	RCA jack connector
Audio output	RCA jack connector
Audio communication	Two-way, full duplex
Audio compression	G.711 (live and recording)
Local Storage
Memory card slot	Supports up to 128 GB micro SD card(An SD card of Class 10 or higher isrecommended for HD recording)
Recording	Continuous recording, Motion/schedule recording, Alarm Trigger
Software Control
Unit configuration	Via web browser or PC surveillance software
Network
Protocols	HTTP, TCP/IP,ARP, RTSP, RTP, UDP,SMTP, FTP, DHCP, DNS, DDNS, PPPOE,UPNP, NTP, 802.1x
Ethernet	10/100 Base-T, auto-sensing, half/fullduplex, RJ45
Wireless	Optional
PoE	IEEE 802.3af compliant
Mechanical
Dimensions	130*50mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (noncondensing)
Ordering Information
IP Smoke Detector Covert Camera	2652-57
