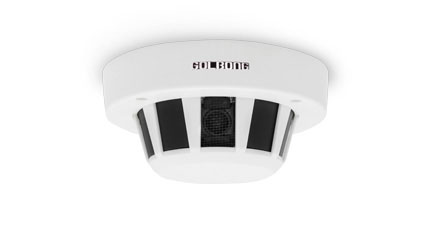

2MP AHD Smoke Detector Camera

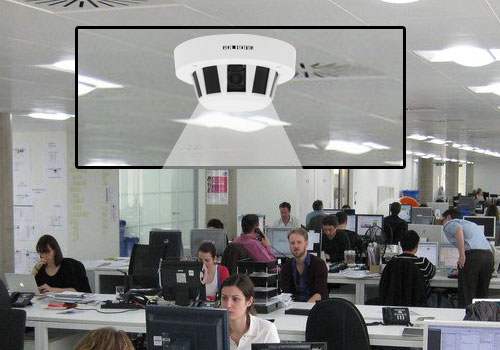

Covert design

The users can have advances for their investigation by setting up a 2652-92 AHD Smoke Detector Covert Camera. Hidden inside the Smoke Detector housing make the camera undetectable.

Moving object capturing

2652-92 AHD Smoke Detector Covert Camera is capable of capturing moving objects and deliver less blurry image which is value for POS area, entrance or exit.

HD Image Detail

The 2652-92 AHD Smoke Detector Covert Camera can provide image detailed in 2MP HD resolution with its 1/2.8 inch CMOS sensor.

Night Vision

2652-92 AHD Smoke Detector Covert Camera is able to see the external infrared at night with built-in IR cut filter and photocells control.

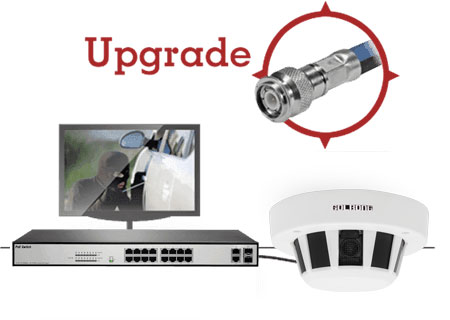

Re-use the coxial cable

The user can re-use existed coaxil cable to ugprade the analog system to HD CCTV with 2652-92 AHD Smoke Detector Covert Camera.

Power
Input voltage	+12 VDC
Power consumption	4.5 W (max)
Video
Sensor type	1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels	1920x1080
Sensitivity	1.0 lx (IR off)
Resolution	1920x1080
Video Output	1 composite video 1 Vpp 75 ohm automatic termination
Day & Night	Auto
Shutter	Auto (1/50(1/60)s to 1/10,000s)
AGC	Auto
Night vision
LED	N/A
Lens
Lens type	3.7mm
Field of View	H: 77°
Lens mount	Board mounted
Day & Night	IR Cut filter
Mechanical
Dimensions	130*50mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (noncondensing)
Ordering Information
AHD Smoke Detector Covert Camera	2652-92
