2MP IP Smoke Detector Camera

2MP IP Smoke Detector Camera

Model:2650-48
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080
Lens: 3.7mm pinhole lens
Frame: 30fps/NTSC
 0 (0)
Overview
Specification
Power
Input voltage +12 VDC or Power-over-Ethernet
Power consumption 6.0 W (max)
Video
Sensor type 1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels 1920x1080
Sensitivity 1.0 lx (IR off) 0 lx (IR on)
Main-stream Resolution 1920x1080@25fps; 1280x720@25fps
Sub-steam Resolution 4CIF@25fps; CIF@25fps
Video compression H.264 MP (Main Profile)
DWDR ON/OFF
3D DNR Yes
Night vision
LED N/A
Lens
Lens type 3.7 mm pinholel lens
Field of View H: 89º
Lens mount Board mounted
Day & Night Auto
Connection
Analog video out N/A
Alarm input (optional) 1 alarm in
Alarm out (optional) 1 alarm out
Audio (optional)
Audio input RCA jack connector
Audio output RCA jack connector
Audio communication Two-way, full duplex
Audio compression G.711 (live and recording)
Local Storage
Memory card slot Supports up to 128 GB micro SD card (An SD card of Class 8 or higher is recommended for HD recording)
Recording Continuous recording, Motion/schedule recording
Software Control
Unit configuration Via web browser or PC surveillance software
Network
Protocols HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45
Wireless N/A
PoE IEEE 802.3af compliant
Mechanical
Dimensions 130*50mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
IP Smoke Detector Covert Camera 2650-48
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

2MP IP Smoke Detector Camera

Model:2650-48
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080
Lens: 3.7mm pinhole lens
Frame: 30fps/NTSC
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

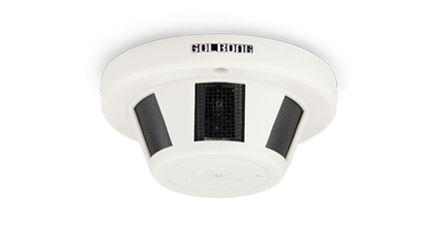

Covert design

The users can have advances for their investigation by setting up a 2650-48 IP Smoke Detector Covert Camera. Hidden inside the Smoke Detector housing make the camera undetectable.

Moving object capturing

2650-48 IP Smoke Detector Covert Camera is capable of capturing moving objects and deliver less blurry image which is value for POS area, entrance or exit.

HD Image Detail

The 2650-48 IP Smoke Detector Covert Camera can provide image detailed in 2MP HD resolution with its 1/2.8 inch CMOS sensor.

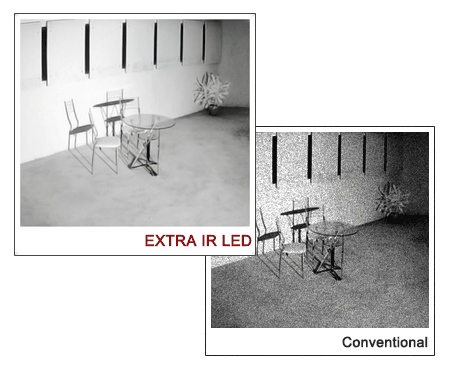

Night Vision

2650-48 IP Smoke Detector Covert Camera is able to see the external infrared at night with built-in IR cut filter and photocells control.

All-in-one camera system

Users can choose either deploying camera standalone or add the camera to the existed surveillance system. The footage can be recorded in the TF card inside the camera. Users don't need to take off memory card to retrieve the footage, They can access the camera remotely over the network connection.

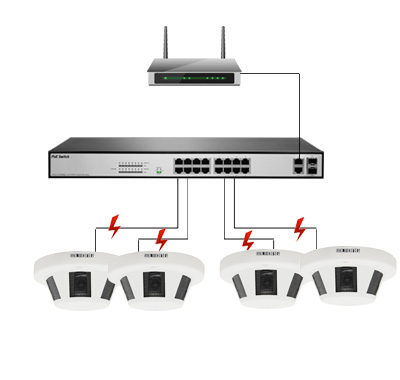

Simple setup

Users only need single cable to carry the power and network to the camera. The power will be separated from the network cable with POE function.
