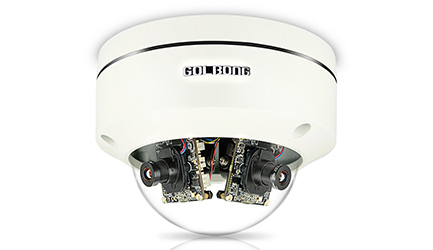

4MP 2-sensor Camera

4MP 2-sensor Camera

Model:2676-21
Sensor: 1/2.8" EXMOR CMOS x2
Pixel: 1920*1080 x2
Lens: 3.6mm lens
Frame: 30fps/NTSC
 0 (0)
Overview
Specification
Power
Input voltage +12 VDC or Power-over-Ethernet
Power consumption 15 W (max)
Video
Sensor type 1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels 1920x1080
Sensitivity 0.1 lx (IR off)
Main-stream Resolution 2 stream 1920x1080@25fps
Sub-steam Resolution 2 stream 4CIF@25fps
Video compression H.264 MP (Main Profile)
DWDR ON/OFF
3D DNR Yes
Night vision
LED N/A
Lens
Lens type 3.6 mm, Fixed Iris F1.4
Field of View 75 degree x 2
Lens mount Board mounted
Day & Night Auto ICR Switch
Connection
Analog video out N/A
Alarm input (optional) 1 alarm in
Alarm out (optional) N/A
Audio (optional)
Audio input RCA jack connector
Audio output RCA jack connector
Audio communication Two-way, full duplex
Audio compression G.711 (live and recording)
Software Control
Unit configuration Via web browser or PC surveillance software
Network
Protocols HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45
IP address 2 independent IP address
Wireless N/A
PoE IEEE 802.3at compliant
Mechanical
Dimensions Diameter: 122 mm Height: 148 mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
4MP 2-Sensor Camera Station 2676-21
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

4MP 2-sensor Camera

Model:2676-21
Sensor: 1/2.8" EXMOR CMOS x2
Pixel: 1920*1080 x2
Lens: 3.6mm lens
Frame: 30fps/NTSC
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

Flexible Coverage

Users can adjust the shooting direction of each sensor, even change the lens to achieve the optimal viewing angle.

Watching Corridor

Users can deploy 2676-21 camera to monitor the same direction but different distance such as corridor.

180 Panoramic View

User can put two sensors together to have 180 degree panoramic view.

Moving object capturing

2676-21 camera is capable of capturing moving objects and deliver less blurry image which is value for POS area, entrance or exit.

One Cable, One Installation, Multi-camera

The users can wire single cable and install 2 camera at once. POE function allows one cable to carry the power and network to the camera.

Working with Regular NVR

The 2676-21 camera can work with regular standalone NVR for footage recording.

Complete Open

The users can deploy 2676-21 camera with 3rd-party software basing Onvif protocols.
