0 (0) | Power | |
| Input voltage | +12 VDC or Power-over-Ethernet |
| Power consumption | 15 W (max) |
| Video | |
| Sensor type | 1/2.8 Type SONY Exmor CMOS Sensor |
| Sensor pixels | 1920x1080 |
| Sensitivity | 0.01 lx (IR off) |
| Main-stream Resolution | 2 stream 1920x1080@25fps |
| Sub-steam Resolution | 2 stream 4CIF@25fps |
| Video compression | H.264 MP (Main Profile) |
| DWDR | ON/OFF |
| 3D DNR | Yes |
| Night vision | |
| LED | N/A |
| Lens | |
| Lens type | 3.6 mm, Fixed Iris F1.4 |

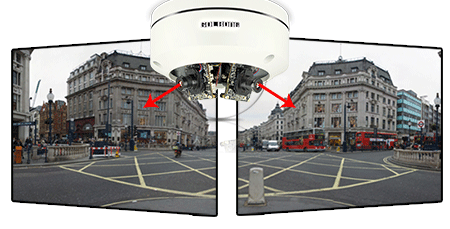

| Field of View | 82 degree x 2 |
| Lens mount | Board mounted |
| Day & Night | Auto ICR Switch |
| Connection | |
| Analog video out | N/A |
| Alarm input (optional) | 1 alarm in |
| Alarm out (optional) | N/A |
| Audio (optional) | |
| Audio input | RCA jack connector |
| Audio output | RCA jack connector |
| Audio communication | Two-way, full duplex |
| Audio compression | G.711 (live and recording) |
| Software Control | |
| Unit configuration | Via web browser or PC surveillance software |
| Network | |
| Protocols | HTTP, TCP/IP,ARP, RTSP, RTP, UDP,SMTP, FTP, DHCP, DNS, DDNS, PPPOE,UPNP, NTP, 802.1x |
| Ethernet | 10/100 Base-T, auto-sensing, half/fullduplex, RJ45 |
| IP address | 2 independent IP address |
| Wireless | N/A |
| PoE | IEEE 802.3at compliant |
| Mechanical | |
| Dimensions | Diameter: 122 mmHeight: 148 mm |
| Weight | TBA |
| Environmental | |
| Operating temperature Camera | -20 ºC to +55 ºC (-4 ºF to +131 ºF) |
| Storage temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) |
| Humidity | 10% to 80% relative humidity (noncondensing) |
| Ordering Information | |

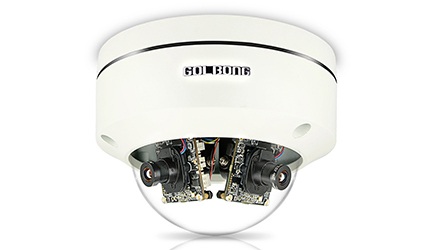

| 4MP 2-Sensor Camera Station | 2676-30 |
