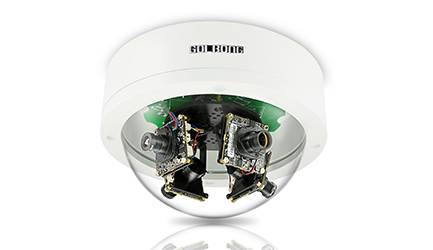

8MP 4-sensor Camera

8MP 4-sensor Camera

Model:2679-21
Sensor: 1/2.8" EXMOR CMOS x4
Pixel: 1920*1080 x4
Lens: 3.6mm lens
Frame: 30fps/NTSC
 0 (0)
Overview
Specification
Power
Input voltage +12 VDC or Power-over-Ethernet
Power consumption 20 W (max)
Video
Sensor type 1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels 1920x1080 (4 units)
Sensitivity 0.1 lx (IR off)
Main-stream Resolution 4 stream 1920x1080@25fps
Sub-steam Resolution 4 stream 4CIF@25fps
Video compression H.264 MP (Main Profile)
DWDR ON/OFF
3D DNR Yes
Night vision
LED N/A
Lens
Lens type 3.6 mm, Fixed Iris F1.4
Field of View 75 degree x 4
Lens mount Board mounted
Day & Night Auto ICR Switch
Connection
Analog video out N/A
Alarm input (optional) 1 alarm in
Alarm out (optional) N/A
Audio (optional)
Audio input RCA jack connector
Audio output RCA jack connector
Audio communication Two-way, full duplex
Audio compression G.711 (live and recording)
Software Control
Unit configuration Via web browser or PC surveillance software
Network
Protocols HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45
IP address 4 independent IP address
Wireless N/A
PoE IEEE 802.3at compliant
Mechanical
Dimensions TBA
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
8MP 4-Sensor Camera Station 2679-21
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

8MP 4-sensor Camera

Model:2679-21
Sensor: 1/2.8" EXMOR CMOS x4
Pixel: 1920*1080 x4
Lens: 3.6mm lens
Frame: 30fps/NTSC
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

Flexible Coverage

Users can adjust the shooting direction of each sensor, even change the lens to achieve the optimal viewing angle.

Watching Corridor

Users can deploy 2679-21 camera to monitor the same direction but different distance such as corridor.

360/180 Panoramic View

User can put four sensors together to have 360 or 180 degree view.

Moving object capturing

2679-21 camera is capable of capturing moving objects and deliver less blurry image which is value for POS area, entrance or exit.

One Cable, One Installation, Multi-camera

The users can wire single cable and install 4 camera at once. POE function allows one cable to carry the power and network to the camera.

Working with Regular NVR

The 2679-21 camera can work with regular standalone NVR for footage recording.

Complete Open

The users can deploy 2679-21 camera with 3rd-party software basing Onvif protocols.
