0 (0) | Power | |
| Input voltage | +12 VDC or Power-over-Ethernet |
| Power consumption | 6 W (max) |
| Video | |
| Sensor type | 1/3 Type CMOS Sensor |
| Sensor pixels | 2592*1520 |
| Sensitivity | 0.5 lx (IR off) 0 lx (IR on) |
| Main-stream Resolution | 2592*1520@15fps; 2048*1536@23fps |
| Sub-steam Resolution | 4CIF@25fps; CIF@25fps |
| Video compression | H.265/H.264 MP (Main Profile) |
| DWDR | ON/OFF |
| 3D DNR | Yes |
| Night vision | |
| Distance | 30 m |
| LED | 36 LED high efficiency array, 850 nm |
| Lens | |
| Lens type | Motorized 2.8 to 12 mm, Fixed Iris F1.4 |
| Field of View | H: 85°- 26° |
| Lens mount | Board mounted |
| Day & Night | Auto ICR Switch (IR correction filter) |
| Connection | |
| Alarm input (optional) | 1 alarm in |
| Alarm out (optional) | 1 alarm out |
| Audio (optional) | |
| Audio input | RCA jack connector |
| Audio output | RCA jack connector |
| Audio communication | Two-way, full duplex |
| Audio compression | G.711 (live and recording) |
| Local Storage (optional) | |
| Memory card slot | Supports up to 128 GB micro SD card (An SD card of Class 10 or higher is recommended for HD recording) |
| Recording | Continuous recording, Motion/schedule recording |
| Software Control | |
| Unit configuration | Via web browser or PC surveillance software |
| Network | |
| Protocols | HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x |
| Ethernet | 10/100 Base-T, auto-sensing, half/full duplex, RJ45 |
| Wireless | N/A |
| PoE | IEEE 802.3af compliant |
| Mechanical | |
| Dimensions | Diameter: 85 mm Height: 150 mm |
| Weight | TBA |
| Environmental | |
| Operating temperature Camera | -20 ºC to +55 ºC (-4 ºF to +131 ºF) |
| Storage temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) |
| Humidity | 10% to 80% relative humidity (non condensing) |
| Ordering Information | |

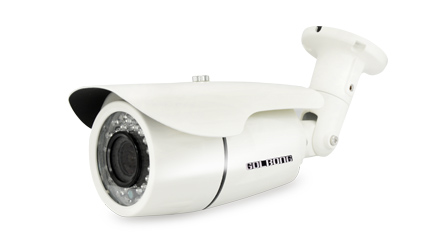

| IR IP Bullet MF 2.8~12mm lens | 2375 |
| * Local Storage function is optional | |
