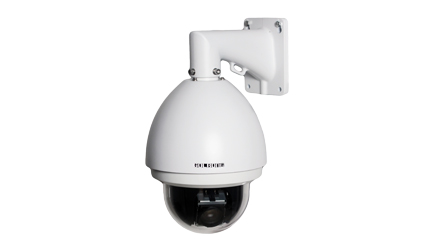

2MP PoE IP PTZ Camera with 30X Zoom
Model:2818-18Pixel: 1920*1080 @ 30fps
Lens: 4.3~129mm Auto Zoom
Day/Night: 8 IR Array
-
Overview
-
Specifications
-
Document
-
Reviews
-
Question & Answer
High definition image detail
The user can see through the objects 100 meters far away with high power zoom capability. Allocate all 2 megapixel to a specific area can make the image extremely clear.
Preset and sequence
The user can set 2818-18 camera automatic moving around the preset positions to guard different surveillance points on the field.
Moving object capturing
2818-18 camera is capable of capturing moving objects and deliver less blurry image which is value for entrance or exit.
Night vision
The 2818-18 camera can capture clear image at night with its built-in high power infrared LEDs.
Waterproof
The user can set 2818-18 camera automatic moving around the preset positions to guard different surveillance points on the field.
Simple and professional setup
The users can easily test the camera on the field with its hang-up conjunction box. POE function allows single cable to carry the power and network to the camera. The power will be separated from the network cable.
| Camera Day/Night | |
| Imager | 1/2.8 Type SONY Exmor CMOS Sensor |
| Effective Picture El- ements | Effective: Approximately 2.3 megapixels Delivered: Approximately 2 megapixels |
| Lens | 30x Zoom(4.3~129mm) |
| Sensitivity | IR OFF IR ON 0.2Lux 0Lux |
| Focus | Automatic with manual override |
| Iris | Automatic with manual override |
| Digital Noise Reduction | 3DNR |
| WDR enhancement | On/Off |
| Gain Control | Auto/Manual/Max. |
| Synchronization | internal crystal |
| Digital Zoom | N/A |
| Signal-to-Noise Ratio (SNR) | >50 dB |
| White Balance | Auto/On/Off |
| Mechanical | |
| Pan Range | 360° cont. |
| Tilt Angle | 1° above horizon |
| Variable Speed | 0.01°/s-300°/s |
| Pre-position Speed | 360°/s |
| Preset Accuracy | ± 0.01° typ. |
| Electrical | |
| Input Voltage | DC12V/PoE+ |
| Power Consumption, typical | 25W |
| Software Control | |
| Camera Setup | Via Internet Explorer Web browser version 7.0 or later, Golbong Operation software |
| Supported Languages | Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI |
| Software Update | Firmware upload |
| Network | |
| Standards | H.265/H.264 |
| Streaming | Two (2) independent streams: Main streams & Sub Stream |
| Data Rate | 512 kbps to 8 Mbps |
| Overall IP Delay | 250 ms |
| Resolution | Resolution (Horizontal x Vertical, PAL/NTSC) |
| • 1080p | 1920x1080@25 fps; 1280x720@25 fps |
| • 4CIF/D1 | 704 x 576 @ 25 fps |
| Ethernet | 10-Base T/100 Base-TX, auto-sensing, half/full duplex, RJ45 |
| Protocols | HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x |
| Miscellaneous | |
| Operation | Hot-key (Preset) |
| Pre-positions | 80 |
| Preset Tours | 5 (fie), consisting of up to 8 preset each, consecutively |
| Auto Pan | Yes |
| Guard Action | Preset/tour |
| User Connections | |
| Power Camera | DC48V, 1.5A |
| Video and Control | RJ-45 100 Base-TX Ethernet |
| Environmental | |
| Design Rating | IP66 |
| Operating Temp. | –35°C to 55°C |
| Storage Temp. | –40°C to 60°C |
| Construction | |
| Dimensions | |
| Weight | 3.2kg |
| Bubble Size | 153.1 mm diameter |
| Construction Material | |
| Housing | Cast aluminum |
| Bubble | Polycarbonate (rugged) |
| Standard Color | White |
| Ordering Information | |
| PoE IP PTZ camera, 30X Optical zoom | 2818-18 |
-
