IP PTZ Controller

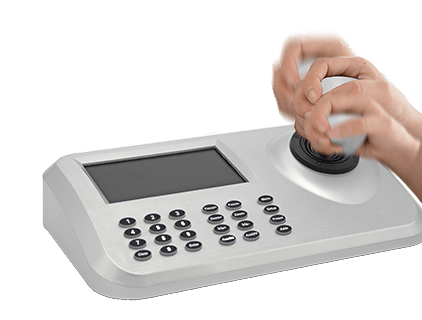

The operator can control online IP PTZ camera with 5510 joystick

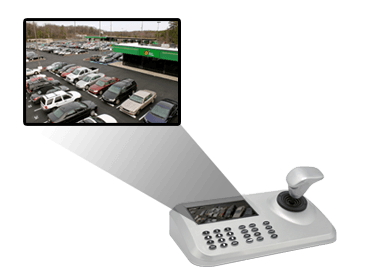

The operator can have realtime video on the built-in monitor.

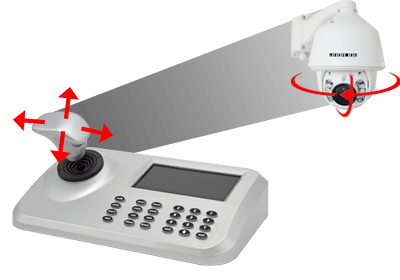

5510 joystick can transfer the hand speed of the operator to the IP PTZ Camera.

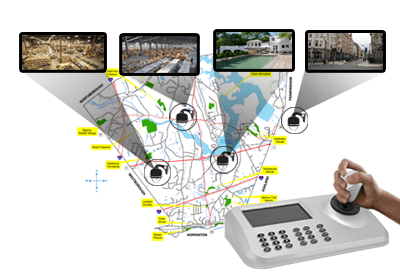

The operator can quick switch to other IP camera by using pre-defined ID.

The 5510 joystick can work with different IP cameras even not PTZ cameras which support Onvif protocols.

General
Operating system	Embedded LINUX
Control mode:	IP-based
Decoding Capaiblity	Support 1080P/720P/D1
Video output	1ch HDMI HD 1080P
Display	5” TFT LCD monitor
IP Video input	unlimited IP address
Joystick:	3-axis joystick
Camera Switch	Mouse or ID
Supported IP H.264 devices	Golbong IP Cameras, Onvif 2.0 compliance IPC
Ethernet	10/100 Base-T, auto-sensing, half/full duplex, RJ45
USB interface	1*USB
Temperature & humidity	-10℃~60℃，humudity less than 90%(no-condensing)
Voltage & current	DC 12V±10%；2000mA
Power consumption	MAX：15W
Dimension	300mm210mm160mm
Weight	1.52kg
Ordering Information
IP PTZ Joystick	5510
