0 (0) | Data & Power | |
| Data rate | Coaxial cable: 90+90 Mbps symmetrical Ethernet cable: 100 Base-TX Full Duplex |
| Connectors | Coaxial: BNC 75 Ohm Ethernet: Shielded RJ45, EIA 568A and 568B DC: Optional DC 48V Input |
| Max. output power | 5460-18: PoE over Coax with safe auto-detection and auto-cutout * optional external DC input to enable PoE+ over coax |
| Input power | 5460-18: Powered by PoE or optional DC input to enable PoE+ over coax |

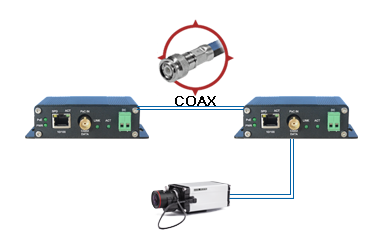

| Installation and management | Plug-and-play installation; Automatically detects PoE and PoE+ enabled devices and supplies in-line power |
| General | |

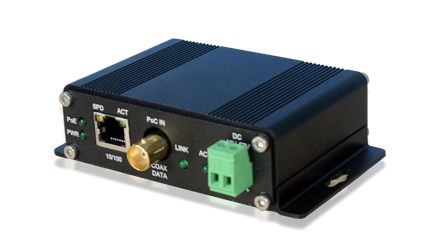

| Display and indicators | LED indicators are located on the panel and RJ45 connector Network indicators: Coax link, activity x2, Power indicators: PoE over Coax, PoE to camera |
| Compliance | IEEE 802.3af, IEEE 802.3at (required external DC48V 1.5A) |

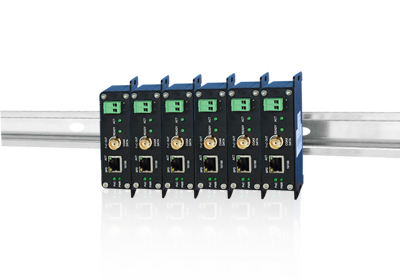

| Mounting | Wall, Din Rail (optional) |
| Environment | Indoor |
| Dimensions (W x D x H) (excluding cabling) | 105.4(L) x 63.5(H) x 30.5(W) |
| Operating temperature | -10 °C to +55 °C |
| Storage temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Relative humidity | Operating: <93 % non-condensing Storage: <95 % non-condensing |
| Ordering Information | |
| PoE+ over Coax Adaptor Kit | 5460-18 |
| * DC48V external Power is required to enable IEEE802.3at | |
| * DC48V external power supply is not included | |
