0 (0) | DVR Specification | |
| Operating System | Embedded LINUX |
| Pentaplex | Simultaneous View, Record, Playback, Backup, and Remote Monitoring |
| Number of Channels | 4 |
| Inputs/Outputs | |
| Video IN | 4 composite video 1 Vpp 75 ohm |
| Video OUT | HDM |
| USB Port | 2 at the back (one USB 3.0) |
| Video Output Resolution | MAX 1080p |
| Display | |
| Live Display | 1, 2x2 |
| Live Display Speed | 120 NTSC, 100 PAL |

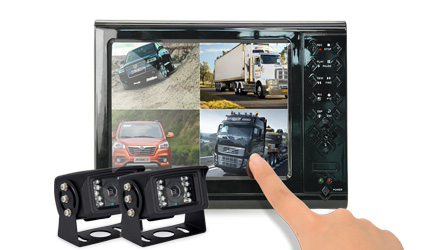

| Monitor | 7inch LCD |
| Touch Screen | Yes |
| OSD | ON/OFF |
| System Navigation | USB Mouse |
| Motion Area Setting | Adjustable grid (22x18) |
| Sensitivity levels | 1-6 |
| Firmware Upgrade | via USB device |
| User Authority | By user group |
| Recording | |
| Video Compression | H.264 |
| Resolution | 720P (1280x720) |
| Record Rate | NTSC: 120FPS @ 780PPAL: 100FPS @ 780P |
| Record Resolution Setting | Per camera for different resolutions |
| Recording Quality | 6 Levels |
| Record Schedule | By hour, by day, by recording mode, by motion, by channel |
| Reliability | Watch-Dog, auto-recovery after power failure |
| Covert Video | Yes |
| Playback | |
| Playback Channel | 4 |
| Playback Speed | Variable Max 8x |
| Search | By time & event |
| Storage & Archive | |
| Storage | Up to 1 HDD ( 2.5 inch SATA) |
| Maximum Capacity | Up to 1 x 1TB |
| Backup Media | USB flash drive, HDD, & Network |
| Backup File Format | H.264 or AVI file |
| Storage & Archive | |
| Supported OS | Windows™, Mac OS |
| Remote Software | GOLBONG Operation Software, CMS5 |
| Instant Smart Phone & Tablet Support | iPad®, iPhone®, Android™ |
| Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,PPPOE, DDNS, FTP, IP Filter |
| Network Interface | 10/100–Base-TX, RJ-45 |
| DVR General | |
| Power Consumption | 10 watts (No HDD Installed) |
| Supply Voltage | 12V DC, 2A, |
| Camera | |
| Imaging Device | 1.3MP 1/3” CMOS |
| Effective Pixels | 1280*960 |
| Day / Night | Auto (ICR) / Color / B/W |
| Min. Illumination | 0.5lux (Color); 0.05lux (B/W) |
| S/N Ratio | >50dB |
| Field of View (H) | 103° |
| Lens Type | 2.8mm fixed lens, F1.6 |
| IR Illumination | Yes, 850nm |
| Video Output | 1 composite video 1 Vpp 75 ohm |
| Video | |
| Video Compression | H.264 |
| Resolution | 720P (1280x960) |
| Aspect Ratio | 0.672916666666667 |
| Frame rates (Maximum) | 1.3MP (1280*960)@ 25fps |
| Wide Dynamic Range | Digital WDR |
| Backlight Compensation | BLC / HLC / DWDR |
| Noise Reduction | 3D |
