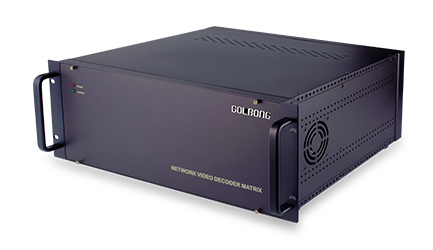

10 HDMI Monitors Video Wall Controller
Model:5809-42
Channel: 8CH analog
Harddrive: 1 Units x 6TB
Standard: H.264
Local display: HDMI/VGA
Harddrive: 1 Units x 6TB
Standard: H.264
Local display: HDMI/VGA
10 HDMI Monitors Video Wall Controller
5809-42
-
Overview
-
Specifications
-
Document
-
Reviews
-
Question & Answer
Build the TV wall
The controller can get video from the Video server, IP cameras, DVRs, NVRs and output to the TV walls.
Decode the video without PC platfrom
The operator can program the layout with PC software and save sequences to the decoders.
Program emergency plans with operation software
The operator can create emergency plans with PC software, switch to the plan when the emergency come up on the field.
32-channel maximum output in each monitor
The decoder can decode 8-channel 1080p, 16-channel 720p, 32-channel D1 IP video to each monitor.
Complete open
The decoder can work with 3rd-party ip camera basing on onvif protocols.
| Rated Voltage and Power | |
| Rated Voltage and Power | 110–240 VAC; 50/60 Hz; 1.5A |
| External power adapterDC output | DC12V 2A |
| Video | |
| Video Standard | PAL or NTSC |
| Compression | H.264 |
| Outputs | VGA/HDMI |
| Inputs | 8 composite video 1 Vpp 75 ohm automatic termination |
| Audio | |
| Inputs | 4 line in , mono RCA,1 Vpp, 10 kohm |
| Output | 1 line out, mono RCA, 1 Vpp, 10 kohm |
| Compression | G.711 |
| Sampling rate | 8 kHz per channel |
| Monitors | |
| VGA/HDMI | Live, playback, menus |
| Live Resolution | SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080PAL: 704x576, NTSC: 704x480 |
| Display Modes | |
| Screen | Full, full sequence, quad, multi-screen (live and playback), event call-up (live) |
| Frame rate PAL/NTSC | 25/30 IPS per channel (real time) |
| Multi-screen mode 4 channels | 1, 2x2, 3x3 |
| Digital Zoom | Yes |
| Display languages | Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI |
| Alarm Handling | |
| Inputs | N/A |
| Outputs | N/A |
| Events | Motion detect, Video Blind, Video Loss, |
| Remote notification | Via Control Center software, email, Push message |
| Malfunction relay | Disk space low, IP conflict, Disk failures |
| Connections | |
| Ethernet | 10/100Base-T, auto-sensing, half/full duplex, RJ45 |
| USB | Two USB 2.0 ports |
| Network | |
| Protocols | HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP |
| Cameras | 8*4M@15fps(AHD)；8*3M@18fps(AHD)；8*1080P(5 in 1) |
| Storage | |
| Internal HDD | 1 unit |
| Redundancy | N/A |
| Exporting | |
| USB | Flash memory |
| Network | Golbong Software |
| Security | |
| Password protection | Multi-level |
| Recording | |
| Overwrite modes | Continuous, overwrite |
| Playback | |
| Decoding Capacity | 4-CH |
| Playback function | Fast forward/reverse, frame forward /reverse,freeze |
| Digital Zoom | yes |
| Search mode | Date/time, Event (motion, input) |
| Mechanical | |
| Dimensions (W x D x H)(excluding cabling) | 255(L) x 44(H) x 236(W) |
| Weight | TBA |
| Environmental | |
| Operating temperature | +5 °C to +45 °C (+41 °F to +113 °F) |
| Storage temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Relative humidity | Operating: <93 % non-condensing Storage: <95 % non-condensing |
| Ordering Information | |
| Analog HD Recorder | 3555-28 |
-
