0 (0) | Power | ||
| Input voltage | +12 VDC or Power-over-Ethernet | |
| Power consumption | 6.0 W (max) | |
| Video | ||
| Sensor type | 1/3 Type CMOS Sensor | |
| Sensor pixels | 2592x1520 | |
| Sensitivity | 1.0 lx (IR off)0 lx (IR on) | |
| Main-stream Resolution | 2592x1520@25fps; 1920x1080@25fps | |
| Sub-steam Resolution | 4CIF@15fps | |
| Video compression | H.264,H.264+,H.265 | |
| DWDR | ON/OFF | |
| 3D DNR | Yes | |
| Night vision | ||
| IR cut filter | Yes | |
| Lens | ||
| Lens type | 3.7 mm pinholel lens | |
| Field of View | H: 76º | |
| Lens mount | Board mounted | |
| Day & Night | Auto ICR Switch | |
| Audio (NOT included) | ||
| Audio input | RCA jack connector | |
| Audio output | RCA jack connector | |
| Audio communication | Two-way, full duplex | |
| Audio compression | G.711 (live and recording) | |
| Local Storage | ||
| Memory card slot | Supports up to 128 GB micro SD card(An SD card of Class 10 or higher isrecommended for HD recording) | |
| Recording | Continuous recording, Motion/schedule recording | |
| Software Control | ||
| Unit configuration | Via web browser or PC surveillance software | |
| Network | ||
| Protocols | HTTP, TCP/IP,ARP, RTSP, RTP, UDP,SMTP, FTP, DHCP, DNS, DDNS, PPPOE,UPNP, NTP, 802.1x | |
| Ethernet | 10/100 Base-T, auto-sensing, half/fullduplex, RJ45 | |
| Wireless | IEEE 802.11b/g/n | |
| PoE | IEEE 802.3af compliant | |
| Mechanical | ||
| Dimensions | 130*50mm | |
| Weight | TBA | |
| Environmental | ||
| Operating temperature Camera | -20 ºC to +55 ºC (-4 ºF to +131 ºF) | |
| Storage temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) | |
| Humidity | 10% to 80% relative humidity (noncondensing) | |
| Ordering Information | ||

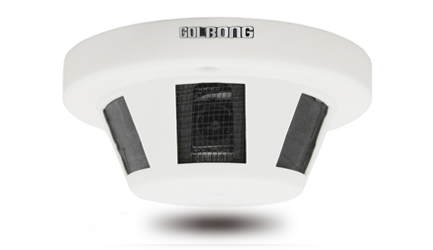

| IP Smoke Detector Covert Camera | 2650-51 | |
