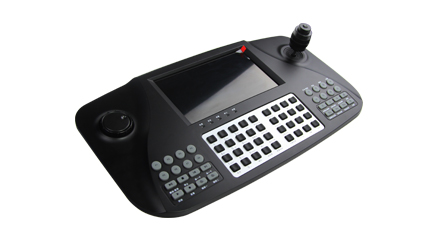

Network Keyboard

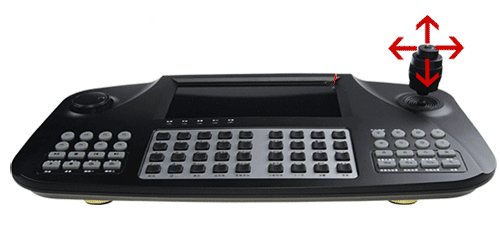

The operator can control online IP PTZ camera with 5510 joystick

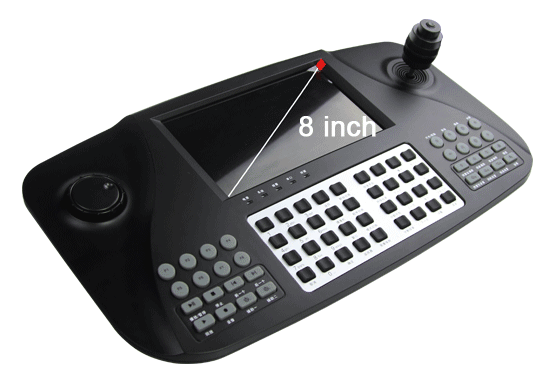

Built-in 8 inch LCD display provide the real time video during the operation.

The operator can program the layout with PC software and save sequences to the decoders.

The decoder can work with 3rd-party ip camera basing on onvif protocols.

General
Operating system	Embedded LINUX
Control mode:	IP-based
Decoding Capaiblity	Support 1080P/720P/D1
Video output	1ch HDMI HD 1080P
Display	5” TFT LCD monitor
IP Video input	unlimited IP address
Joystick:	3-axis joystick
Camera Switch	Mouse or ID
Supported IP H.264 devices	Golbong IP Cameras, Onvif 2.0 compliance IPC
Ethernet	10/100 Base-T, auto-sensing, half/full duplex, RJ45
USB interface	1*USB
Temperature & humidity	-10℃~60℃，humudity less than 90%(no-condensing)
Voltage & current	DC 12V±10%；2000mA
Power consumption	MAX：15W
Dimension	300mm210mm160mm
Weight	1.52kg
Ordering Information
IP PTZ Joystick	5510
