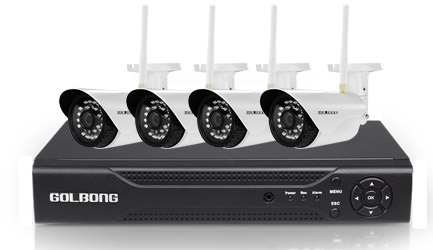

Wireless Foaling Camera Kit Long Range 5 km with Night Vision

Smart phone Accessing

The user can watch the live thru smart phone via app.

HD Image Detail

The 2203-79 Camera can provide image detailed in 1.3MP HD resolution with its 1/3 inch CMOS sensor.

5km Wireless setup

Users can connect the 2203-79 camera to the network with WIFI. It eliminates the requirement to wire back to a router.

Complete setup in minutes, not an hour

The users can setup the ip system with quick set module which will assign the IP address and make the connection to each cameras automatically.

Mass recording

The 2203-79 camera system can take up to 6TB harddriver which is able to continuous recording over one months.

Night vision

The 2203-79 camera can capture clear image at night with its built-in infrared LEDs.

Simple setup

Users only need single cable to carry the power and network to each camera. The power will be separated from the network cable with POE function.

NVR Specification
Operating System	Embedded LINUX
Pentaplex	Simultaneous View, Record, Playback, Backup, and Remote Monitoring
Number of Channels	4
Inputs/Outputs
Video IN	4 PoE Video Input
Video OUT	HDMI only ( without VGA)
Audio IN/Out	N/A
USB Port	2 at the back (one USB 3.0)
Alarm IN/Out	N/A
Video Output Resolution	MAX 4K
PTZ control	IP PTZ cameras with Onvif profile-S
Display
Live Display	1, 2x2, 3x3
Live Display Speed	240 NTSC, 200 PAL
OSD	ON/OFF
System Navigation	USB Mouse
Motion Area Setting	Adjustable grid (22x18)
Sensitivity levels	1-6
Firmware Upgrade	via USB device or network
User Authority	By user group
Time Synchronization	Auto time sync by NTP server
Recording
Video Compression	H.265/H.264 selectable
Resolution	4MP (25921520), 3M(20481536), 1080P (1920x1080)
Record Rate	NTSC: 240FPS @ 4MPPAL: 200FPS @ 4MP
Record Resolution Setting	Per camera for different resolutions
Recording Quality	6 Levels
Record Schedule	By hour, by day, by recording mode, by motion, by channel
Reliability	Watch-Dog, auto-recovery after power failure
Covert Video	Yes
Playback
Playback Channel	1/4
Playback Speed	Variable Max 8x
Search	By time & event
Storage & Archive
Storage	Up to 1 HDD (SATA)
Maximum Capacity	Up to 1 x 6TB
Backup Media	USB flash drive, HDD, & Network
Backup File Format	H.264/H.265 or AVI file
Storage & Archive
Cloud Connection	GOLBONG P2P Cloud
Supported OS	Windows™, Mac OS
Remote Software	GOLBONG Operation Software, CMS5
Email Notification	Text
Instant Smart Phone & Tablet Support	iPad®, iPhone®, Android™
System Configuration	Auto or manual
Network Protocol	HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,PPPOE, DDNS, FTP, IP Filter
Network Interface	10/100–Base-TX, RJ-45
NVR General
Power Consumption	10 watts (No HDD Installed)
Supply Voltage	100VAC-240VAC, 48V DC, 2.5A,
Total PoE Power Output	80W (across all channels)
Camera
Imaging Device	4.0MP 1/3” CMOS
Effective Pixels	2592*1520
Day / Night	Auto (ICR) / Color / B/W
Min. Illumination	0.5lux (Color); 0.05lux (B/W)
S/N Ratio	>50dB
Field of View (H)	82°
Lens Type	3.6mm fixed lens, F1.6
IR Illumination	Yes, 850nm
Video Output	RJ45
Video
Video Compression	H.265/H.264 selectable
Resolution	4MP (25921520), 3M(20481536), 1080P (1920x1080)
Aspect Ratio	0.672916666666667
Frame rates (Maximum)	4MP (2592*1520)@ 25fps
Bit Rate Selection	Compression Type:56K~ 8129Kbps
Wide Dynamic Range	Digital WDR
Backlight Compensation	BLC / HLC / DWDR
Noise Reduction	3D
ONVIF Conformance	Profile S (v2.1)
