0 (0) | Ports | |
| Number of Ports | 4 ports PoE |
| Data Rate | 10/100 BaseTX |
| Performance | |
| MAC Address | 2 K |
| Buffer Memory | 768K/M bits |
| Transmission Method | Store and Forward |
| Transmission Medie | 10BaseT Cat. 5 UTP 100BaseTX Cat. 5 UTP |
Mechanical Characteristics | |
| LED Indicators | Per Port: Link/Act |
| PoE Act/Status | |
| Power | |
| Electrical Characteristics | |
| Input | 48 V/1.5A |
| Standard | 802.3at/af compliant |
| PoE Ports | 1-4 Ports,10-100Mbps POE Ethernet port |
| Max. Power Consumption | 60 W |
| Connectors | Shielded RJ45, EIA 568A and 568B |
| Network cables | Shielded category 5 (or higher) |
| Wiring | Data provided over pairs 1/2 and 3/6 |
| Dimensions (H x W x D) | 120*107*29mm |
| Weight | 0.396 kg |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Storage Temperature | -20°C ~ 90°C (-4°F ~ 194°F) |
| Humidity | 10 to 90% RH (non-condensing) |
| Standards and Regulatory | |
| Standards | IEEE-802.3at PoE+ / PSE IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3x Flow Control |
| Regulatory | CE, FCC Class A |
| Ordering Information | |

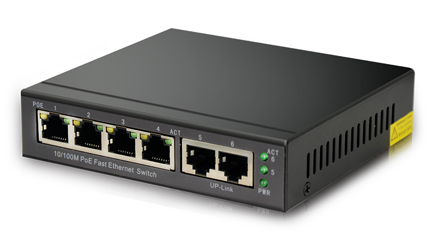

| 60W High Power POE Switch | 5440-36 |
