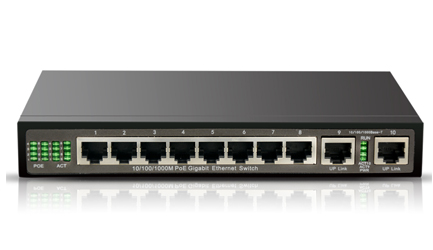

PoE Switch Gigabit 8 Port for 4K IP Camera NVR

The user can add the new PoE cameras to the system with existed network cable.

The 5440-64 switch can provide 60W max power source in single cable to network camera or PoE extender front-end.

The 5440-64 switch can keep working 24/7 with cooling system.

The 5440-64 switch can take the challenge from 4K surveillance with its Gigabit ethernet strucutre.

Ports
Number of Ports	8 ports PoE
Data Rate	10/100/1000 Gigabit BaseTX
Performance
MAC Address	16 K
Buffer Memory	4 M bits
Transmission Method	Store and Forward
Transmission Media	10BaseT Cat. 5 UTP 100BaseTX Cat. 5 UTP 1000BaseTX Cat. 5 UTP

Mechanical Characteristics
LED Indicators	Per Port: Link/Act PoE Act/Status Power
Electrical Characteristics
Input	48 V/2.5A
Standard	802.3at/af compliant
PoE Ports	1-8 Ports，10/100/1000Mbps POE Ethernet
Max. Power Consumption	120 W
Connectors	Shielded RJ45, EIA 568A and 568B
Network cables	Shielded category 5 (or higher)
Wiring	Data & Power is provided over pairs 1/2 and 3/6
Dimensions (H x W x D)	19311929mm
Weight	0.688 kg
Operating Temperature	0°C ~ 45°C (32°F ~ 113°F)
Storage Temperature	-20°C ~ 90°C (-4°F ~ 194°F)
Humidity	10 to 90% RH (non-condensing)
Standards and Regulatory
Standards	IEEE-802.3at PoE+ / PSE IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3x Flow Control
Regulatory	CE, FCC Class A
Ordering Information
60W High Power POE Switch	5440-64
