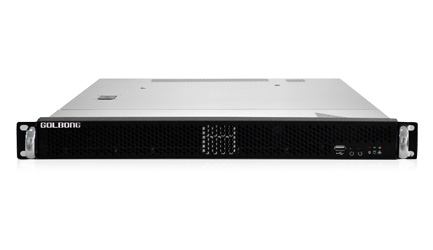

32CH 1U Rackmount NVR
Model:3025-68Harddrive: 5 Units x 6TB
Standard: H.265/H.264
Local display: HDMI/VGA
-
Overview
-
Specifications
-
Document
-
Reviews
-
Question & Answer
Reliable Architecture
The 3025-68 PRO NVR can keep working 24/7 with its embedded linux system and 300w server power supply.
Next Level Codec
The 3025-68 PRO NVR can deliver 30% ~ 50% extra recording capability with its H.265 codec.
Scalability and Flexibility

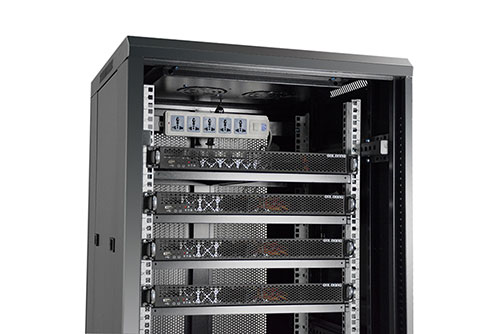

The operator can easily expand the IP system with 1U rackmount design. Each 3025-68 NVR can connect up to 32-channel 4MP IP video.
All-in-One System

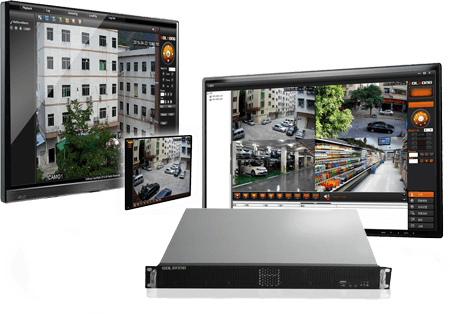

The operator can use 3025-68 NVR to record the live stream from cameras, decode video feed for real time monitor, and search footage for review.
Response to the IPC alarm
The 3025-68 PRO NVR can respsone the alarm input from Golbong ip cameras and generate immediately video popup on the screen.
Complete open
The users can integrate Golbong 3025-68 NVR with 3rd party ip camera which support Onvif protocols. The motion record can accomplish as long as the camera has followed the message notification instruction.
| Rated Voltage and Power | |
| Rated Voltage and Power | 110–240 VAC; 50/60 Hz; 1.5A |
| External power adapter DC output | N/A |
| Video | |
| Video Standard | PAL or NTSC |
| Compression | H.265/H.264 |
| Outputs | VGA/HDMI |
| Audio | |
| Inputs | 1 line in , mono RCA,1 Vpp, 10 kohm |
| Output | 1 line out, mono RCA, 1 Vpp, 10 kohm |
| Compression | G.711 |
| Sampling rate | 8 kHz per channel |
| Monitors | |
| VGA/HDMI | Live, playback, menus |
| Live Resolution | SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080 PAL: 704x576, NTSC: 704x480 |
| Display Modes | |
| Screen | Full, full sequence, quad, multi-screen (live and playback), event call-up (live) |
| Frame rate PAL/ NTSC | 25/30 IPS per channel (real time) |
| Multi-screen mode 4 channels | 1, 2x2, 3x3, 4x4,5x5, 6x6 |
| Digital Zoom | Yes |
| Display languages | Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI |
| Alarm Handling | |
| Inputs | Screw terminal, 16 inputs, configurable NO/NC, |
| Outputs | 4 output |
| Events | Motion detect, Video Blind, Video Loss, IPC Alarm, Local Alarm |
| Remote notification | Via Control Center software, email, Push message |
| Malfunction relay | Disk space low, IP conflict, Disk failures |
| Connections | |
| Ethernet | 10/100/1000 Base-T, auto-sensing, half/full duplex, RJ45 |
| USB | Two USB 2.0 ports |
| Network | |
| Protocols | HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP |
| IP cameras | 24 IP 5MP/32 IP 4MP/16 IP 1080p |
| Supported IP H.264 devices | Golbong IP Cameras, Onvif 2.0 compliance IPC |
| Storage | |
| Internal HDD | 5 unit |
| Redundancy | Yes |
| Exporting | |
| USB | Flash memory |
| Network | Golbong Software |
| Security | |
| Password protection | Multi-level |
| Recording | |
| Overwrite modes | Continuous, overwrite |
| Playback | |
| Decoding Capacity | 5MP Mode @ 120 fps (4-CH) 4MP Mode @ 270 fps (9-CH) 1080p Mode @ 480 fps (16-CH) |
| Playback function | Fast forward/reverse, frame forward /reverse,freeze |
| Digital Zoom | yes |
| Search mode | Date/time, Event (motion, input) |
| Mechanical | |
| Dimensions (W x D x H) (excluding cabling) | 443(L) x 43(H) x 427.5(W) |
| Weight | TBA |
| Environmental | |
| Operating temperature | +5 °C to +45 °C (+41 °F to +113 °F) |
| Storage temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Relative humidity | Operating: <93 % non-condensing Storage: <95 % non-condensing |
| Ordering Information | |
| PRO Network Video Recorder, 24 IP 5MP/32 IP 4MP/16 IP 1080p | 3025-68 |
-
