| Rated Voltage and Power |
| Rated Voltage and Power |
110–240 VAC; 50/60 Hz; 1.5A |
| External power adapterDC output |
DC12V 4A |
| Video |
| Video Standard |
PAL or NTSC |
| Compression |
H.265/H.264 |
| Outputs |
VGA/HDMI |
| Audio |
| Inputs |
1 line in , mono RCA,1 Vpp, 10 kohm |
| Output |
1 line out, mono RCA, 1 Vpp, 10 kohm |
| Compression |
G.711 |
| Sampling rate |
8 kHz per channel |
| Monitors |
| VGA/HDMI |
Live, playback, menus |
| Live Resolution |
SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080PAL: 704x576, NTSC: 704x480 |
| Display Modes |
| Screen |
Full, full sequence, quad, multi-screen (live and playback), event call-up (live) |
| Frame rate PAL/NTSC |
25/30 IPS per channel (real time) |
| Multi-screen mode 4 channels |
1, 2x2, 3x3, 4x4 |
| Digital Zoom |
Yes |
| Display languages |
Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI |
| Alarm Handling |
| Inputs |
N/A |
| Outputs |
N/A |
| Events |
Motion detect, Video Blind, Video Loss, IPC Alarm |
| Remote notification |
Via Control Center software, email, Push message |
| Malfunction relay |
Disk space low, IP conflict, Disk failures |
| Connections |
| Ethernet |
10/100/1000 Base-T, auto-sensing, half/full duplex, RJ45 |
| USB |
Two USB 2.0 ports |
| Network |
| Protocols |
HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP |

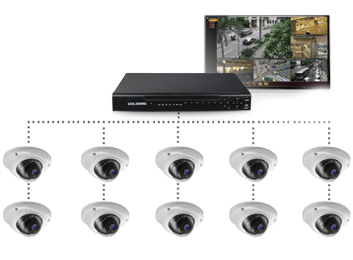

| IP cameras |
8 IP 5MP/16 IP 4MP |
| Supported IP H.264devices |
Golbong IP Cameras, Onvif 2.0 compliance IPC |
| Storage |
| Internal HDD |
2 unit |
| Redundancy |
Yes |
| Exporting |
| USB |
Flash memory |
| Network |
Golbong Software |
| Security |
| Password protection |
Multi-level |
| Recording |
| Overwrite modes |
Continuous, overwrite |
| Playback |
| Decoding Capacity |
5mp @120 fps (4-CH) |
| Playback function |
Fast forward/reverse, frame forward /reverse,freeze |
| Digital Zoom |
yes |
| Search mode |
Date/time, Event (motion, input) |
| Mechanical |
| Dimensions (W x D x H)(excluding cabling) |
350(L) x 44(H) x 296.4(W) |
| Weight |
TBA |
| Environmental |
| Operating temperature |
+5 °C to +45 °C (+41 °F to +113 °F) |
| Storage temperature |
-25 °C to +70 °C (-13 °F to +158 °F) |
| Relative humidity |
Operating: <93 % non-condensing Storage: <95 % non-condensing |
| Ordering Information |

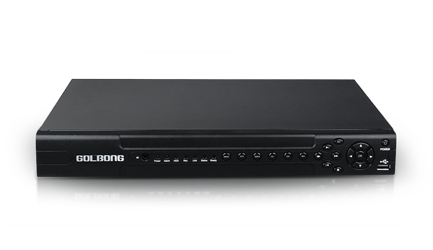

| PRO Network Video Recorder, 8 IP 5MP/16 IP 4MP |
3044 |
