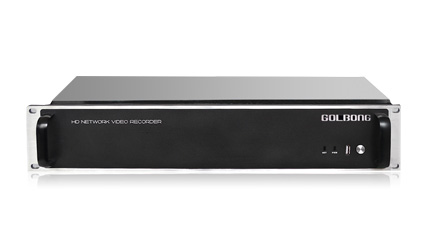

64CH 2U Rackmount NVR

64CH 2U Rackmount NVR

Model:3025-83
Channel: 64CH
Harddrive: 8 Units x 6TB
Standard: H.265/H.264
Local display: HDMI/VGA
 0 (0)
Overview
Specification
Rated Voltage and Power
Rated Voltage and Power 110–240 VAC; 50/60 Hz; 1.5A
External power adapter DC output N/A
Video
Video Standard PAL or NTSC
Compression H.265/H.264
Outputs VGA/HDMI
Audio
Inputs 1 line in , mono RCA,1 Vpp, 10 kohm
Output 1 line out, mono RCA, 1 Vpp, 10 kohm
Compression G.711
Sampling rate 8 kHz per channel
Monitors
VGA/HDMI Live, playback, menus
Live Resolution SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080 PAL: 704x576, NTSC: 704x480
Display Modes
Screen Full, full sequence, quad, multi-screen (live and playback), event call-up (live)
Frame rate PAL/ NTSC 25/30 IPS per channel (real time)
Multi-screen mode 4 channels 1, 2x2, 3x3, 4x4,5x5, 6x6, 8x8
Digital Zoom Yes
Display languages Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI
Alarm Handling
Inputs Screw terminal, 16 inputs, configurable NO/NC,
Outputs 4 output
Events Motion detect, Video Blind, Video Loss, IPC Alarm, Local Alarm
Remote notification Via Control Center software, email, Push message
Malfunction relay Disk space low, IP conflict, Disk failures
Connections
Ethernet 10/100/1000 Base-T, auto-sensing, half/full duplex, RJ45
USB Two USB 2.0 ports
Network
Protocols HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP
IP cameras 24 IP 5MP/36 IP 4MP/64 IP 1080p
Supported IP H.264 devices Golbong IP Cameras, Onvif 2.0 compliance IPC
Storage
Internal HDD 8 unit
Redundancy Yes
Exporting
USB Flash memory
Network Golbong Software
Security
Password protection Multi-level
Recording
Overwrite modes Continuous, overwrite
Playback
Decoding Capacity 5MP Mode @ 120 fps (4-CH) 4MP Mode @ 270 fps (9-CH) 1080p Mode @ 120 fps (4-CH)
Playback function Fast forward/reverse, frame forward /reverse,freeze
Digital Zoom yes
Search mode Date/time, Event (motion, input)
Mechanical
Dimensions (W x D x H) (excluding cabling) 443(L) x 92(H) x 427.5(W)
Weight TBA
Environmental
Operating temperature +5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
PRO Network Video Recorder, 24 IP 5MP/36 IP 4MP/64 IP 1080p 3025-83
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

64CH 2U Rackmount NVR

Model:3025-83
Channel: 64CH
Harddrive: 8 Units x 6TB
Standard: H.265/H.264
Local display: HDMI/VGA
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

Reliable Architecture

The 3025-83 PRO NVR can keep working 24/7 with its embedded linux system and 300w server power supply.

Next Level Codec

The camera is able to deliver H.265 codec with 30% ~ 50% storage space saving on the NVR

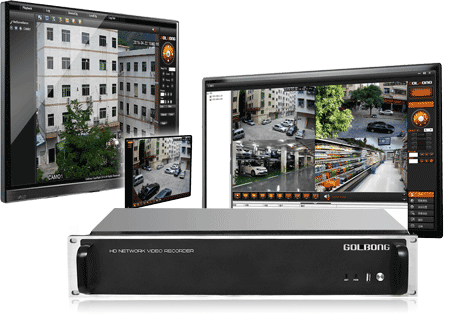

All-in-One System

The operator can use 3025-83 NVR to record the live stream from cameras, decode video feed for real time monitor, and search footage for review.

Response to the IPC alarm

The 3025-83 PRO NVR can respond the alarm input from Golbong ip cameras and generate immediately video popup on the screen.

Mass Storage

The 3025-83 PRO NVR is capable of taking 8 unit hard disk with 48 TB space which can keep recording all channels more than 30 days in 1080p resolution.

Complete open

The users can integrate 3025-83 NVR with 3rd party ip camera which support Onvif protocols. The motion record can accomplish as long as the camera has followed the message notification instruction.
