Home / Product / Recorder / Regular NVR / 4CH Standalone NVR

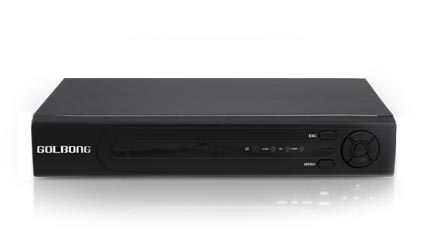

4CH Standalone NVR

4CH Standalone NVR

Model:3045-36
Channel: 4CH
Harddrive: 1 Units x 6TB
Standard: H.264
Local display: HDMI/VGA
 0 (0)
Overview
Specification
Rated Voltage and Power
Rated Voltage and Power 110–240 VAC; 50/60 Hz; 1.5A
External power adapterDC output 12VDC
Video
Video Standard PAL or NTSC
Compression H.264
Outputs HDMI/VGA
Audio
Inputs N/A
Output N/A
Monitors
Monitors Live, playback, menus
Live Resolution SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080PAL: 704x576, NTSC: 704x480
Display Modes
Screen Full, full sequence, quad, multi-screen (live and playback), event call-up (live)
Frame rate PAL/NTSC 25/30 IPS per channel (real time)
Multi-screen mode 8 channels 1, 2x2, 3x3
Digital Zoom Yes
Display languages Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI
Alarm Handling
Inputs Golbong IP camera
Outputs N/A
Events Motion detect, Video Blind, Video Loss, IPC Alarm
Remote notification Via Control Center software, email, Push message
Malfunction relay Disk space low, IP conflict, Disk failures
Connections
Ethernet 10/100 Base-T, auto-sensing, half/fullduplex, RJ45
USB Two USB 2.0 ports
Network
Protocols HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP
IP cameras 3045-36: 4 IP at 2mp3045-75: 8 IP at 2mp
Supported IPdevices Golbong IP Cameras, Onvif 2.0 compliance IPC
Storage
Internal HDD 1 unit
Redundancy N/A
Exporting
USB Flash memory
Network Golbong Software
Security
Password protection Multi-level
Recording
Overwrite modes Continuous, overwrite
Playback
Decoding Capacity 3045-36: @ 30 fps (1-CH) 3045-75: @ 60 fps (2-CH)
Playback function Fast forward/reverse, frame forward /reverse,freeze
Digital Zoom yes
Search mode Date/time, Event (motion, input)
Mechanical
Dimensions (W x D x H)(excluding cabling) 105.4(L) x 63.5(H) x 30.5(W)mm
Weight TBA
Environmental
Operating temperature +5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
8CH PoE NVR 3045-36
4CH PoE NVR 3045-75
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

4CH Standalone NVR

Model:3045-36
Channel: 4CH
Harddrive: 1 Units x 6TB
Standard: H.264
Local display: HDMI/VGA
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

Complete setup in minutes, not an hour

The users can setup the ip system with quick set module which will assign the IP address and make the connection to each cameras automatically.

All in one system

The operator can use 3045-36/75 NVR to record the live stream from camera, decode video feed for real time monitor, search footage for review.

Motion recording and playback

The 3045-36/75 NVR can start record the video stream when the motion is detected by the camera. The operator doesn't need to playback all the footage, but only interests section.

Onvif complete open

The users can integrate 3045-36/75 NVR with 3rd-party ip camera which support Onvif protocols. The motion record can accomplish as long as the camera has followed the message notification instruction.
