How to Playback the Video from TF Memory Card
share...
1.In the "Main" , Click “Playback” .

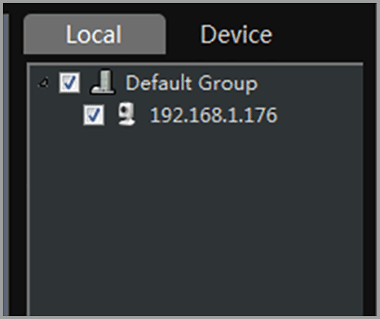

2.Click “Device” to playback the footage on TF memory card.







NOTE: If choose “Local”, The CMS5 will try to search the footage on the PC computer.


3.Check and select the camera you want to playback.

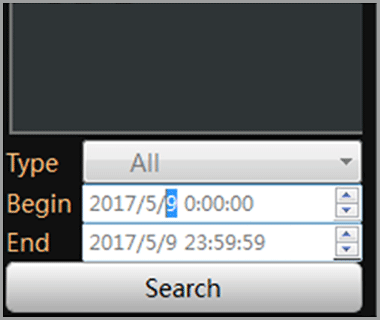

4.Select the time period in the lower right corner.







NOTE: It only can search footage within a single day.



5.Click “Search”. The search result will display as below.







6.Select the footage from the list, click play button , the software will start play.

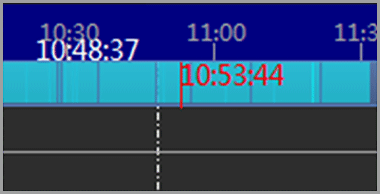

7.Choose the “Time” over “File” at the left corner, the time frame will appear.







8.Move the mouse to the time frame, time will display in white. Click the mouse, the software will start playback the footage from this moment.







NOTE: the time in red is current playing time stamp.
