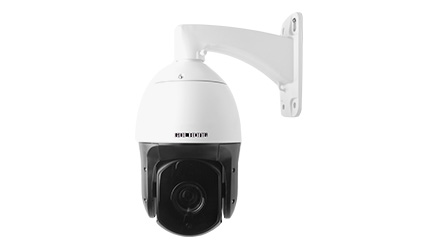

Câmera Speed Dome IP Zoom 20x AHD 2MP

High definition image detail

The user can see through the objects 100 meters far away with high power zoom capability. Allocate all 2 megapixel to a specific area can make the image extremely clear.

Re-use the coxial cable

The user can re-use existed coaxil cable to ugprade the analog system to HD CCTV with 2806 camera.

Preset and sequence

The user can set 2806-30 camera automatic moving around the preset positions to guard different surveillance points on the field.

Moving object capturing

2806-30 camera is capable of capturing moving objects and deliver less blurry image which is value for entrance or exit.

Night vision

The 2806-30 camera can capture clear image at night with its built-in high power infrared LEDs.

Waterproof

The users can deploy the 2806-30 camera in the harsh environment outside perimeter with heavy wind, rain, and snow.

Camera 20x Day/Night
Imager	1/2.8 in. Low Lux CMOS
Effective Picture El- ements	Approximately 2 megapixels
Lens	20x Zoom (4.7~94mm)
Sensitivity	IR OFF
	0.2Lux
Focus	Automatic with manual override
Iris	Automatic with manual override
Gain Control	Auto/Manual/Max.
Synchronization	internal crystal
Signal-to-Noise Ratio (SNR)	>48 dB
White Balance	Auto/On/Off
Mechanical
Pan Range	360° cont.
Tilt Angle	1° above horizon
Variable Speed	0.01°/s-300°/s
Pre-position Speed	360°/s
Preset Accuracy	± 0.01° typ.
Electrical
Input Voltage	DC12V 3A
Power Consumption, typical	25W
Smart Infrared System
Distance	Automatically match with zoom operation, 120meters Max.
LED	8 high power array, 850 nm
Miscellaneous
Operation	Hot-key (Preset)
Pre-positions	80
Preset Tours	5 (five), consisting of up to 16 scenes each, consecutively
Auto Pan	Yes
Guard Action	Preset/tour
User Connections
Power Camera	DC12V, 4A
Control Data	RS-485 ±
Alarm I/O	N/A
Environmental
Design Rating	IP66
Operating Temp.	–35°C to 55°C
Storage Temp.	–40°C to 60°C
Construction
Dimensions
Weight	3.2kg
Bubble Size	153.1 mm diameter
Construction Material
Housing	Cast aluminum
Bubble	Polycarbonate (rugged)
Standard Color	White
Ordering Information
Analog HD PTZ Camera 20X optical zoom;	2806-30
