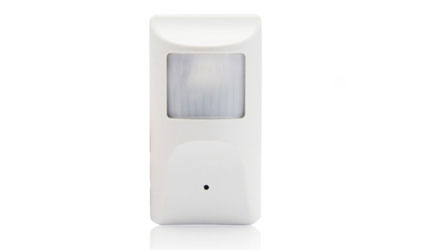

Câmera Camuflada de Sensor de Presença IP 2MP

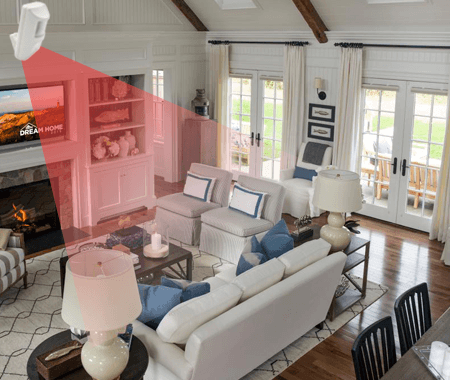

Covert design

The users can have advances for their investigation by setting up a 2643-48 IP PIR camera. Hidden inside the PIR housing and invisible infrared make the camera undetectable.

HD Image Detail

The 2643-48 IP PIR camera can provide image detailed in 2MP HD resolution with its 1/2.8 inch CMOS sensor.

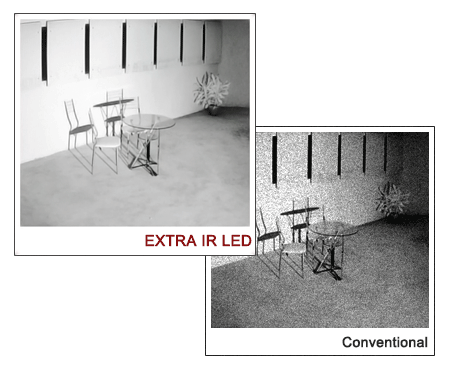

Night vision

The 2643-48 IP PIR camera is able to see the external infrared at night with built-in IR cut filter and photocells control.

All-in-one camera system

Users can choose either deploying camera standalone or add the camera to the existed surveillance system. The footage can be recorded in the TF card inside the camera. Users don't need to take off memory card to retrieve the footage, They can access the camera remotely over the network connection.

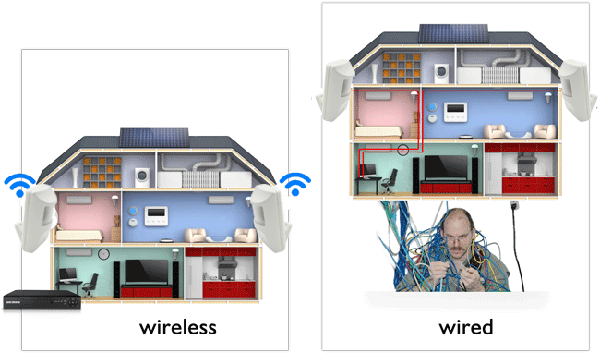

Simple setup

Users can connect the 2643-48 IP PIR camera to the network with WIFI. It eliminates the requirement to wire back to a router.

Power
Input voltage	+12 VDC or Power-over-Ethernet
Power consumption	6.0 W (max)
Video
Sensor type	1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels	1920x1080
Sensitivity	1.0 lx (IR off) 0 lx (IR on)
Main-stream Resolution	1920x1080@25fps; 1280x720@25fps
Sub-steam Resolution	4CIF@25fps; CIF@25fps
Video compression	H.264 MP (Main Profile)
DWDR	ON/OFF
3D DNR	Yes
Night vision
LED	N/A
Lens
Lens type	3.7 mm pinholel lens
Field of View	H: 89º
Lens mount	Board mounted
Day & Night	Auto ICR Switch
Connection
Analog video out	N/A
Alarm input (optional)	1 alarm in
Alarm out (optional)	1 alarm out
Audio (optional)
Audio input	RCA jack connector
Audio output	RCA jack connector
Audio communication	Two-way, full duplex
Audio compression	G.711 (live and recording)
Local Storage
Memory card slot	Supports up to 128 GB micro SD card (An SD card of Class 8 or higher is recommended for HD recording)
Recording	Continuous recording, Motion/schedule recording
Software Control
Unit configuration	Via web browser or PC surveillance software
Network
Protocols	HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet	10/100 Base-T, auto-sensing, half/full duplex, RJ45
Wireless	IEEE 802.11b/g/n
PoE	IEEE 802.3af compliant
Mechanical
Dimensions	1307050mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (non condensing)
Ordering Information
Infrared IP PIR Covert Camera	2643-48
