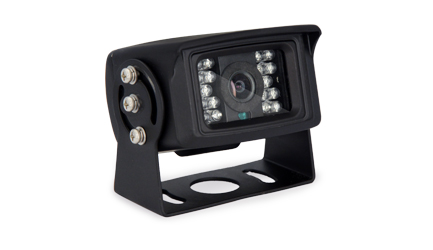

Mini Câmera Veiculares 1.3MP

The 4089-60 camera can deliver image detailed in 960p HD resolution with its 1/3 inch EXMOR sensor.

The compact design can improve the customers experience in the vehicle.

The 4089-60 camera can stand the vibration in the vehicle.

Users can deploy 4089-60 camera to cover wide area in the vehicle.

The 4089-60 camera can capture clear image at night with its built-in infrared LEDs.

Power
Input voltage	+12 VDC
Power consumption	6 W (max)
Video
Sensor type	1/3 inch Type Low lux CMOS Sensor
Sensor pixels	1280x960
Sensitivity	0.1 lx (IR off)0 lx (IR on)
Resolution	1280x960
Video Output	4-pin DJ M12
Day & Night	photocells control
Shutter	Auto (1/50(1/60)s to 1/10,000s)
AGC	Auto
Night vision
Distance	<10 m
LED	18 LED high efficiency array, 850 nm
Lens
Lens type	2.8mm
Field of View	H: 103°
Lens mount	Board mounted
Day & Night	Auto ICR Switch
Mechanical
Dimensions	Diameter:62 mmLenght: 75 mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (noncondensing)
Ordering Information
720p Coaxial Analog HD Vehicle Camera	4089-60
