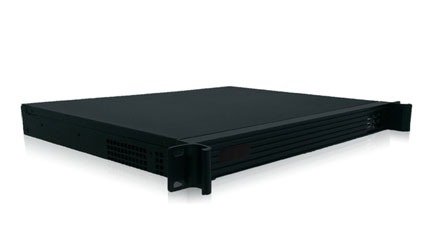

Servidor de Gerenciamento Central IP 512 Canais

Servidor de Gerenciamento Central IP 512 Canais

Modelo:5802
Channel: 512CH
Standard: H.264
Video forward: 32CH
 0 (0)
Descrição
Specification
Rated Voltage and Power
Rated Voltage 180V~240V,47Hz~63Hz
Power 220W
Video
Video Standard PAL or NTSC
Compression H.264/H.265
Max. IP Connecting 512 channels
Max. video re-generating 32 channels @ 2M bit rate
Decoding Outputs N/A (works with decoder)
Audio
Inputs 1 line in , mono RCA,1 Vpp, 10 kohm
Output 1 line out, ono RCA, 1 Vpp, 10 kohm
Compression G.711
Sampling rate 8 kHz per channel
Monitors
VGA/HDMI Devices Management
Live Resolution SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080 PAL: 704x576, NTSC: 704x480
Connections
Ethernet 10/100/1000 Base-T, auto-sensing, half/full duplex, RJ45
USB Two USB 2.0 ports front four USB 2.0 ports rear
Network
Supported devices Golbong IP Cameras, NVR, DVR
Mechanical
Dimensions (W x D x H) (excluding cabling) 420(L) x 430(H) x 45(W)mm
Weight 8.0kg
Environmental
Operating temperature +5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
Center Server 512-channel 5802
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Servidor de Gerenciamento Central IP 512 Canais

Modelo:5802
Channel: 512CH
Standard: H.264
Video forward: 32CH
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

Auto Register Connect

The Center server can connect Golbong IP cameras, NVRs, and DVRs on multi-sites without know each of its IP address.

Manage IP devices

The operator can configure each IP camera, NVR, or DVR on the site from the monitoring center.

Monitor devices' status

The operator can read the status of each IP devices on multi-sites, receiving alarm message from motion detection, alarm I/O.

Video Re-generated

The center server can re-generate 256CH/32CH video and streams to the network for remote accessing.

Search Right Video

The operator can find the right video recording on the cameras or recorders from the monitoring center.

Create Unlimited Users

The operator can create unlimited accounts and assign the specific cameras for each users to access remotely.

Mobile access

The users can access the re-generated feed from mobile phone anywhere.
