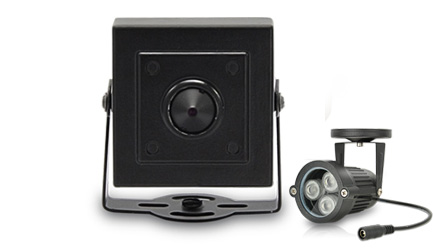

Mini Câmera Pinhole AHD 2MP

The users can have advances for their investigation by setting up a 2654-83 AHD Mini Pinhole Camera.

The 2654-83 AHD Mini Pinhole Camera can provide image detailed in 2MP HD resolution with its 1/3 inch CMOS sensor.

The user can re-use existed coaxil cable to ugprade the analog system to HD CCTV with 2654-83 AHD Mini Pinhole Camera.

Power
Input voltage	+12 VDC
Power consumption	4.5 W (max)
Video
Sensor type	1/3 Type CMOS Sensor
Sensor pixels	1920*1080
Sensitivity	1.0 lx (IR off)
Resolution	1920*1080
Video Output	1 composite video 1 Vpp 75 ohm automatic termination
Day & Night	Auto
Shutter	Auto (1/50(1/60)s to 1/10,000s)
AGC	Auto
Night vision
LED	N/A
Lens
Lens type	3.7mm
Field of View	H: 77°
Lens mount	Board mounted
Day & Night	N/A
Mechanical
Dimensions	424225mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (noncondensing)
Ordering Information
AHD Mini pinhole Camera	2654-83
