Câmera de Moldura da porta IP

Face Capture Setup

The user can install 2646-48 camera on the door frame to capture the face detail.

HD Image Detail

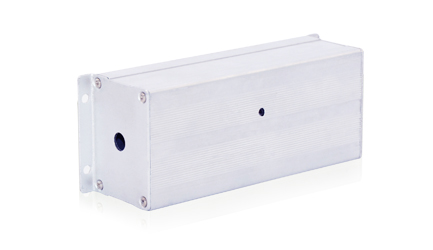

The 2646-48 IP door frame camera can provide image detailed in 2MP HD resolution with its 1/2.8 inch CMOS sensor.

Covert Design

The discreet design make the camera easy to blend into business environment. The customer will more feel comfortable without seeing the camera shooting on them.

All-in-one camera system

Users can choose either deploying IP door frame camera standalone or add the camera to the existed surveillance system. The footage can be recorded in the TF card inside the camera. Users don't need to take off memory card to retrieve the footage, They can access the camera remotely over the network connection.

Simple setup

Users only need single cable to carry the power and network to the 2646-48 IP door frame camera. The power will be separated from the network cable with POE function.

Power
Input voltage	+12 VDC or Power-over- Ethernet
Power consumption	4.5 W (max)
Video
Sensor type	1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels	1920x1080
Sensitivity	1.0 lx (IR off)
Main-stream Resolution	1920x1080@25fps; 1280x720@25fps
Sub-steam Resolution	4CIF@25fps; CIF@25fps
Video compression	H.264 MP (Main Profile)
DWDR	ON/OFF
3D DNR	Yes
Lens
Lens type	3.7 mm pinholel lens
Field of View	H: 89º
Lens mount	Board mounted
Day & Night	Auto IR Cut filter
Connection
Analog video out	N/A
Alarm input (optional)	1 alarm in
Alarm out (optional)	1 alarm out
Audio (optional)
Audio input	RCA jack connector
Audio output	RCA jack connector
Audio communication	Two- way, full duplex
Audio compression	G.711 (live and recording)
Local Storage
Memory card slot	Supports up to 128 GB micro SD card(An SD card of Class 8 or higher isrecommended for HD recording)
Recording	Continuous recording, Motion/schedule recording
Software Control
Unit configuration	Via web browser or PC surveillance software
Network
Protocols	HTTP, TCP/IP,ARP, RTSP, RTP, UDP,SMTP, FTP, DHCP, DNS, DDNS, PPPOE,UPNP, NTP, 802.1x
Ethernet	10/100 Base-T, auto- sensing, half/fullduplex, RJ45
Wireless	N/A
PoE	IEEE802.3af
Mechanical
Dimensions	1405238mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (noncondensing)
Ordering Information
IP Door Frame Camera; on-board storage,	2646-48
