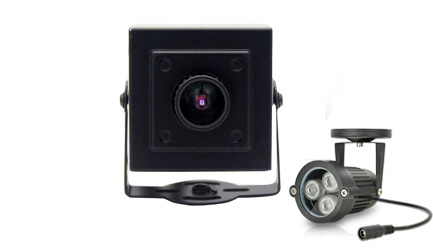

Mini Câmera Pinhole sem fio WIFI

Mini Câmera Pinhole sem fio WIFI

Modelo:2654-73
Sensor: 1/3" EXMOR CMOS
Pixel: 1280*960
Lens: 2.8mm pinhole lens
Frame: 25fps/NTSC
 0 (0)
Descrição
Specification
Power
Input voltage +12 VDC
Power consumption 4.5 W (max)
Video
Sensor type 1/3 Type CMOS Sensor
Sensor pixels 1280x960
Sensitivity 1.0 lx (IR off)
Main-stream Resolution 1280x720@22fps
Sub-steam Resolution 4CIF@25fps
Video compression H.264 MP (Main Profile)
DWDR ON/OFF
3D DNR Yes
Night vision
LED IR cut filter
Lens
Lens type 2.8 mm pinholel lens
Field of View H: 103º
Lens mount Board mounted
Day & Night IR cut filter
Connection
Analog video out N/A
Alarm input (optional) 1 alarm in
Alarm out (optional) N/A
Audio (optional)
Audio input RCA jack connector
Audio output RCA jack connector
Audio communication Two-way, full duplex
Audio compression G.711 (live and recording)
Local Storage
Memory card slot Supports up to 128 GB micro SD card(An SD card of Class 8 or higher isrecommended for HD recording)
Recording Continuous recording, Motion/schedule recording
Software Control
Unit configuration Via web browser or PC surveillance software
Network
Protocols HTTP, TCP/IP,ARP, RTSP, RTP, UDP,SMTP, FTP, DHCP, DNS, DDNS, PPPOE,UPNP, NTP, 802.1x
Ethernet N/A
Wireless IEEE 802.11b/g/n
PoE N/A
Mechanical
Dimensions 42*42*25mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (noncondensing)
Ordering Information
WIFI mini Camera 2654-73
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Mini Câmera Pinhole sem fio WIFI

Modelo:2654-73
Sensor: 1/3" EXMOR CMOS
Pixel: 1280*960
Lens: 2.8mm pinhole lens
Frame: 25fps/NTSC
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

Covert design

The users can have advances for their investigation by setting up a 2654-73 WIFI mini Camera.

HD Image Detail

The 2654-73 IP pinhole Camera can provide image detailed in 1.3MP HD resolution with its 1/3 inch CMOS sensor.

Night Vision

2654-73 WIFI mini Camera is able to see the external infrared at night with built-in IR cut filter and photocells control.

All-in-one camera system

Users can choose either deploying camera standalone or add the camera to the existed surveillance system. The footage can be recorded in the TF card inside the camera. Users don't need to take off memory card to retrieve the footage, They can access the camera remotely over the network connection.

Simple setup

Users can connect the 2654-73 WIFI mini Camera to the network with WIFI. It eliminates the requirement to wire back to a router.
